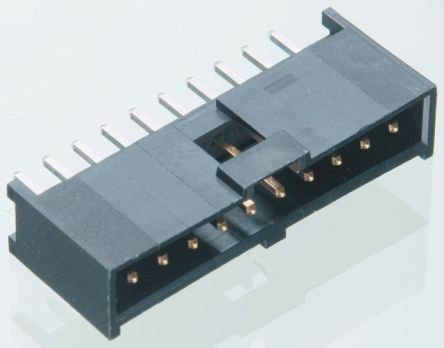

90136-1110

Teknik Özellikler

Contact Materials

Brass

Contact Style

SQ PIN-SKT

RoHS Durumu

RoHS Compliant

Yayın Yılı

2007

Ul Flammability Code

94V-0

Body Depth

0.429 inch

Orientation

Vertical

Option

GENERAL PURPOSE

Maks. Çalışma Sıcaklığı

125°C

Radyasyon Dayanımı

No

Insertion Forcemax

3.0024 N

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

Housing Material

Polyester

Additional Feature

C-GRID III

Contact Lengthmating

6.7564mm

HTS Kodu

8536.69.40.40

Din Conformance

NO

Max Voltage Rating Dc

350.35kV

Renk

Black

Rated Current Signal

3A

Akım Değeri

3A

Fabrika Tedarik Süresi

12 Weeks

Filter Feature

NO

Reliability

COMMERCIAL

Contact Resistance

20mOhm

Terminal

Solder

Reference Standard

UL

Kurşunsuz Kodu

yes

Fastening Type

Latch

Number Of Pcb Rows

1

Contact Pattern

RECTANGULAR

Contact Plating

Tin

Mixed Contacts

NO

Kurşunsuz

Lead Free

Mil Conformance

NO

Lead Pitch

2.54mm

Connector Type

Male Pin

Min. Çalışma Sıcaklığı

-55°C

Number Of Conductors

ONE
