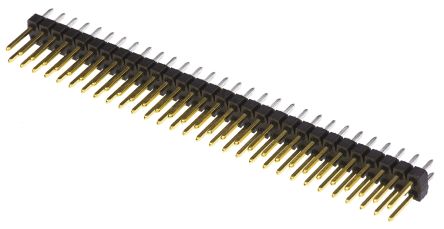

90131-0790

Teknik Özellikler

RoHS Durumu

RoHS Compliant

Contact Style

SQ PIN-SKT

Ul Flammability Code

94V-0

Body Depth

0.098 inch

Yayın Yılı

2013

JESD-609 Kodu

e3

Row Spacing Mating

2.54 mm

Number Of Contacts

60

Contact Materials

Brass

Dielectric Withstanding Voltage

350VDC V

Insertion Forcemax

.973 N

Housing Material

Polyester

Pcb Contact Pattern

RECTANGULAR

Additional Feature

C-GRID III

Option

GENERAL PURPOSE

Orientation

Straight

Maks. Çalışma Sıcaklığı

125°C

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Din Conformance

NO

Length Termination

0.114 inch

Renk

Black

Body Length Or Diameter

3 inch

Plating Thickness

15μin

Gender

Male

Contact Lengthmating

6.7564mm

HTS Kodu

8536.69.40.40

Terminal

Solder

Kurşunsuz Kodu

yes

Reference Standard

UL

Rated Current Signal

3A

Akım Değeri

3A

Fabrika Tedarik Süresi

13 Weeks

Filter Feature

NO

Reliability

COMMERCIAL

Contact Pattern

RECTANGULAR

Mixed Contacts

NO

Contact Plating

Gold

Kurşunsuz

Lead Free

Number Of Pcb Rows

2

Min. Çalışma Sıcaklığı

-55°C
