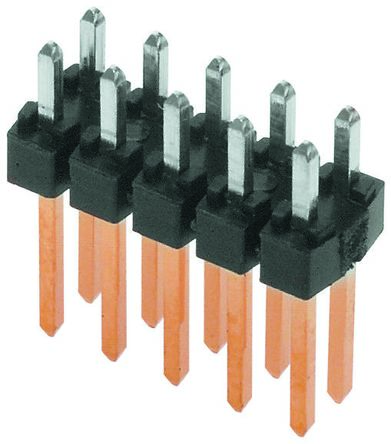

90131-0773

Teknik Özellikler

Sıra Sayısı

2

Withdrawl Forcemin

.1946 N

Voltage Rated Ac

350V

Total Number Of Contacts

26

Pozisyon Sayısı

26

Iec Conformance

NO

Voltage Rated Dc

350V

ECCN Kodu

EAR99

Bodyshell Style

RECEPTACLE

Montaj

Through Hole

Contact Pattern

RECTANGULAR

Mixed Contacts

NO

Contact Plating

Gold

Kurşunsuz

Lead Free

Number Of Pcb Rows

2

Min. Çalışma Sıcaklığı

-55°C

Number Of Conductors

ONE

Pitch

2.54mm

Insulation Resistance

5GOhm

Lead Pitch

2.54mm

Mil Conformance

NO

Material

Glass, Polyester

Connector Type

Male Pin

Din Conformance

NO

Length Termination

0.114 inch

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Body Length Or Diameter

1.3 inch

Plating Thickness

15μin

Gender

Male

Renk

Black

Contact Lengthmating

6.7564mm

HTS Kodu

8536.69.40.40

Contact Resistance

20mOhm

Terminal

Solder

Reference Standard

UL

Kurşunsuz Kodu

yes

Rated Current Signal

3A

Akım Değeri

3A

Fabrika Tedarik Süresi

9 Weeks

Filter Feature

NO
