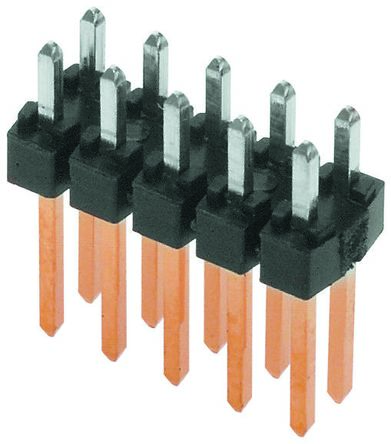

90131-0772

Teknik Özellikler

Reach Svhc

Unknown

HTS Kodu

8536.69.40.40

Contact Lengthmating

6.7564mm

Plating Thickness

15μin

Gender

Male

Renk

Black

Din Conformance

NO

Length Termination

0.114 inch

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Fabrika Tedarik Süresi

9 Weeks

Filter Feature

NO

Reliability

COMMERCIAL

Akım Değeri

3A

Rated Current Signal

3A

Contact Resistance

20mOhm

Terminal

Solder

Reference Standard

UL

Kurşunsuz Kodu

yes

Dielectric Withstanding Voltage

350VDC V

Contact Materials

Brass

Row Spacing Mating

2.54 mm

JESD-609 Kodu

e3

Yayın Yılı

2002

Body Depth

0.098 inch

Ul Flammability Code

94V-0

Contact Style

SQ PIN-SKT

RoHS Durumu

RoHS Compliant

Radyasyon Dayanımı

No

Voltage Working

350V

Orientation

Straight

Option

GENERAL PURPOSE

Maks. Çalışma Sıcaklığı

125°C

Pcb Contact Pattern

RECTANGULAR

Housing Material

Polyester

Additional Feature

C-GRID III

Insertion Forcemax

.973 N

Withdrawl Forcemin

.1946 N

Sıra Sayısı

2

Voltage Rated Dc

350V

ECCN Kodu

EAR99
