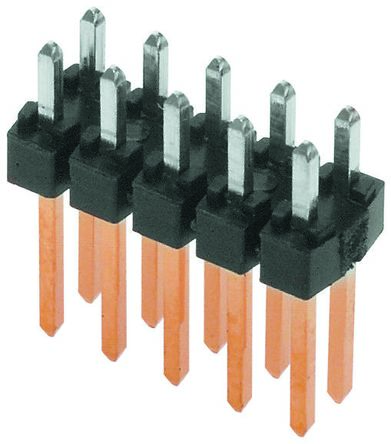

90131-0133

Teknik Özellikler

Connector Type

Male Pin

Nominal Gerilim

350V

Mil Conformance

NO

Insulation Resistance

5000000000Ohm

Number Of Conductors

ONE

Pitch

2.54mm

Min. Çalışma Sıcaklığı

-55°C

Number Of Pcb Rows

2

Mixed Contacts

NO

Contact Plating

Tin

Kurşunsuz

Lead Free

Contact Pattern

RECTANGULAR

ECCN Kodu

EAR99

Bodyshell Style

RECEPTACLE

Montaj

Through Hole

Iec Conformance

NO

Withdrawl Forcemin

.1946 N

Uzunluk

33.02mm

Sıra Sayısı

2

Radyasyon Dayanımı

No

Option

GENERAL PURPOSE

Orientation

Straight

Maks. Çalışma Sıcaklığı

125°C

Pcb Contact Pattern

RECTANGULAR

Housing Material

Polyester

Additional Feature

C-GRID III

Depth

5.08mm

Dielectric Withstanding Voltage

350VDC V

Contact Materials

Brass

Row Spacing Mating

2.54 mm

JESD-609 Kodu

e3

Number Of Contacts

26

Yayın Yılı

2011

Ul Flammability Code

94V-0

Contact Style

SQ PIN-SKT

RoHS Durumu

RoHS Compliant

Filter Feature

NO

Fabrika Tedarik Süresi

11 Weeks

Reliability

COMMERCIAL

Rated Current Signal

3A
