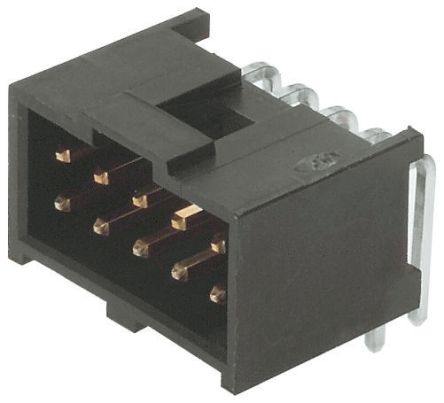

90130-1226

Teknik Özellikler

Orientation

Vertical

Voltage Rated Ac

350V

Option

GENERAL PURPOSE

Durability

500 Cycles

Dielectric Withstanding Voltage

700VAC V

Material

Glass, Polyester

Reliability

COMMERCIAL

Iec Conformance

NO

RoHS Durumu

RoHS Compliant

Row Spacing Mating

2.54 mm

Contact Materials

Brass

Housing Material

Polyester

Insertion Forcemax

1.0008 N

Din Conformance

NO

Kurşunsuz Kodu

yes

ECCN Kodu

EAR99

Reference Standard

UL

Length Termination

0.114 inch

Montaj

Through Hole

Number Of Pcb Rows

2

HTS Kodu

8536.69.40.40

Kurşunsuz

Lead Free

Voltage Working

350V

Contact Gender

Male

Fabrika Tedarik Süresi

9 Weeks

Lead Pitch

2.54mm

Parça Durumu

Active

Renk

Black

Bodyshell Style

RECEPTACLE

Yayın Yılı

2009

Total Number Of Contacts

26

Glow Wire Compliant

Non-compliant

Voltage Rated Dc

350V

Insulation Resistance

5GOhm

Number Of Conductors

ONE

Akım Değeri

3A

Filter Feature

NO

Maks. Çalışma Sıcaklığı

125°C

Mil Conformance

NO

Body Breadth

0.384 inch
