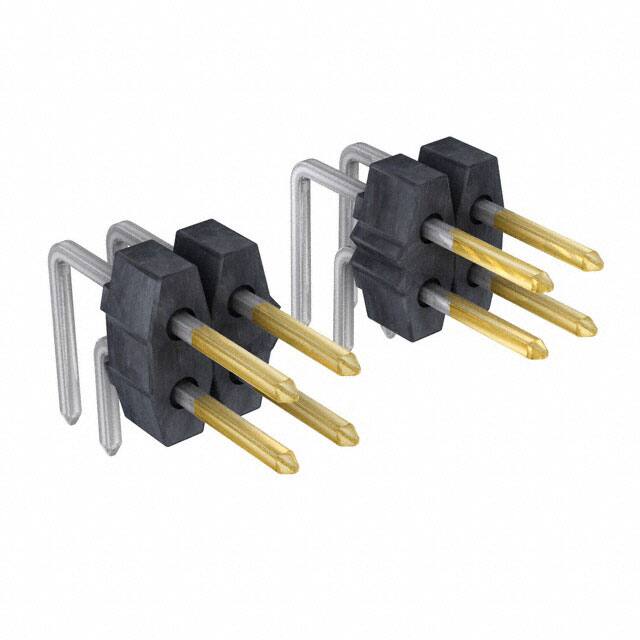

90122-0771

Teknik Özellikler

Min. Çalışma Sıcaklığı

-55°C

Mixed Contacts

NO

Mating Contact Pitch

0.1 inch

Contact Lengthmating

0.266 6.75mm

Contact Resistance

20mOhm

Withdrawl Forcemin

.1946 N

Applications

Automotive, General Purpose

Sıra Sayısı

2

Pcb Contact Pattern

RECTANGULAR

Number Of Positions Loaded

All

Contact Type

Male Pin

Contact Shape

Square

Plating Thickness

15μin

Rated Current Signal

3A

Terminal

Solder

Ul Flammability Code

94V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Connector Type

Header, Breakaway

Filter Feature

NO

Mil Conformance

NO

Maks. Çalışma Sıcaklığı

125°C

Contact Finish Post

Tin

Style

Board to Board or Cable

Number Of Conductors

ONE

Housing Color

Black

Akım Değeri

3A

Insulation Resistance

5GOhm

Yayın Yılı

2001

Insulation Height

0.242 6.14mm

Parça Durumu

Active

Ambalaj

Bulk

Gender

Male

Material Flammability Rating

UL94 V-0

Shrouding

Unshrouded

Contact Length Post

0.114 2.90mm

Nominal Gerilim

350V

Kurşunsuz

Lead Free

Insulation Materials

Polyester, Glass Filled

Contact Finish Thickness Mating

15.0μin 0.38μm

Number Of Pcb Rows

2
