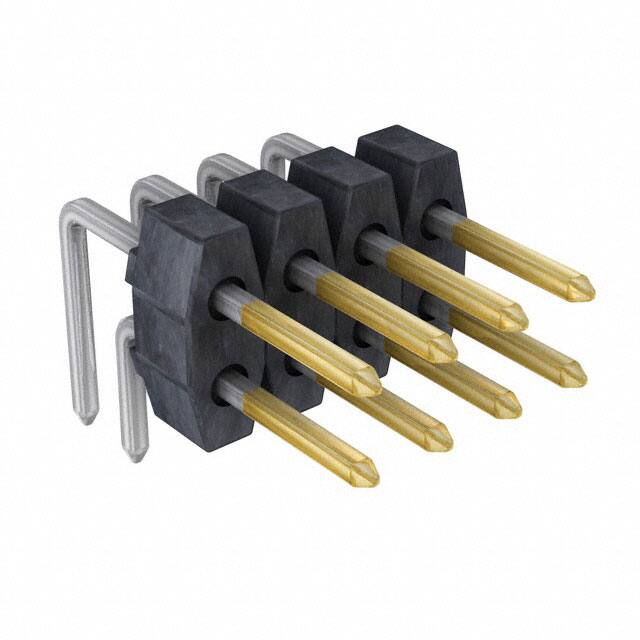

90122-0762

Teknik Özellikler

Shrouding

Unshrouded

Gender

Male

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

11 Weeks

Contact Finish Thickness Mating

15.0μin 0.38μm

Number Of Pcb Rows

2

Contact Length Post

0.114 2.90mm

Nominal Gerilim

350V

Insulation Materials

Polyester, Glass Filled

Kurşunsuz

Lead Free

Montaj

Through Hole

Pitch Mating

0.100 2.54mm

Housing Material

Plastic

Kurşunsuz Kodu

yes

Montaj Tipi

Through Hole, Right Angle

Insertion Forcemax

.973 N

Din Conformance

NO

Contact Finish Mating

Gold

Reference Standard

UL

ECCN Kodu

EAR99

Reliability

COMMERCIAL

Iec Conformance

NO

Row Spacing Mating

0.100 (2.54mm)

RoHS Durumu

ROHS3 Compliant

Contact Materials

Brass

Orientation

Right Angle

Dielectric Withstanding Voltage

350VDC V

Contact Finish Thickness Post

118.1μin 3.00μm

Pozisyon Sayısı

4

Seri

C-Grid III 90122

Fastening Type

Push-Pull

Mixed Contacts

NO

Mating Contact Pitch

0.1 inch

Min. Çalışma Sıcaklığı

-55°C

Radyasyon Dayanımı

No

Applications

Automotive, General Purpose

Sıra Sayısı

2

Contact Lengthmating

0.266 6.75mm

Contact Resistance

20mOhm

Contact Type

Male Pin
