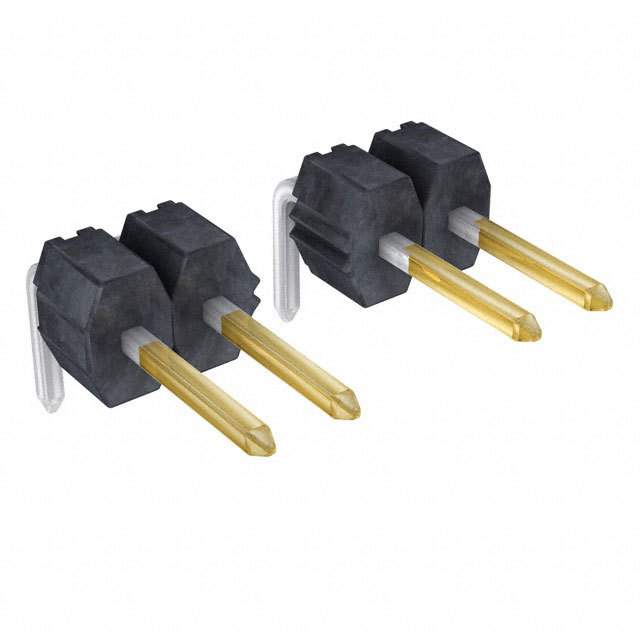

90121-0771

Teknik Özellikler

Mixed Contacts

NO

Contact Style

SQ PIN-SKT

Min. Çalışma Sıcaklığı

-55°C

Additional Feature

C-GRID III

Sıra Sayısı

1

Contact Lengthmating

6.7564mm

Contact Resistance

20mOhm

Pitch

2.54mm

Rated Current Signal

3A

Pcb Contact Pattern

RECTANGULAR

Contact Plating

Gold

Filter Feature

NO

Mil Conformance

NO

Maks. Çalışma Sıcaklığı

125°C

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Ul Flammability Code

94V-0

Contact Pattern

RECTANGULAR

Terminal

Solder

Connector Type

Male Pin

Number Of Conductors

ONE

Akım Değeri

3A

Yayın Yılı

2008

Bodyshell Style

RECEPTACLE

Glow Wire Compliant

Non-compliant

Number Of Circuits

10

Insulation Resistance

5000000000Ohm

Ambalaj

Bulk

Renk

Black

JESD-609 Kodu

e3

Gender

Male

Fabrika Tedarik Süresi

13 Weeks

Lead Pitch

2.54mm

Number Of Pcb Rows

1

HTS Kodu

8536.69.40.40

Nominal Gerilim

350V

Kurşunsuz

Lead Free

Montaj

Through Hole

Housing Material

Polyester

Insertion Forcemax

.973 N

Din Conformance

NO
