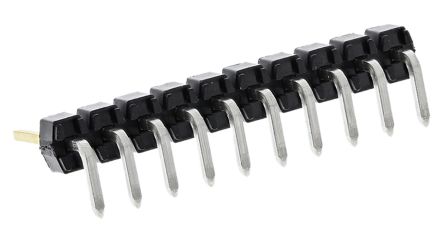

90121-0770

Teknik Özellikler

Gender

Male

Voltage Working

350V

Lead Pitch

2.54mm

Fabrika Tedarik Süresi

9 Weeks

Number Of Pcb Rows

1

Kurşunsuz

Lead Free

Montaj

Through Hole

Din Conformance

NO

Kurşunsuz Kodu

yes

Housing Material

Polyester

Reference Standard

UL

Iec Conformance

NO

Material

Glass, Polyester

Reliability

COMMERCIAL

Contact Materials

Brass

RoHS Durumu

RoHS Compliant

Dielectric Withstanding Voltage

350VDC V

Orientation

Right Angle

Voltage Rated Ac

350V

Option

GENERAL PURPOSE

Contact Style

SQ PIN-SKT

Mixed Contacts

NO

Reach Svhc

Unknown

Min. Çalışma Sıcaklığı

-55°C

Sıra Sayısı

1

Radyasyon Dayanımı

No

Additional Feature

C-GRID III

Pitch

2.54mm

Contact Resistance

20mOhm

Contact Lengthmating

6.7564mm

Rated Current Signal

3A

Pcb Contact Pattern

RECTANGULAR

Number Of Poles

10

Contact Plating

Gold

Filter Feature

NO

Mil Conformance

NO

Maks. Çalışma Sıcaklığı

125°C

Connector Type

Male Pin

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Terminal

Solder
