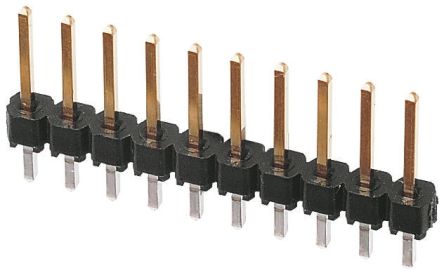

90120-0130

Teknik Özellikler

Contact Gender

Male

Fabrika Tedarik Süresi

11 Weeks

Number Of Pcb Rows

1

HTS Kodu

8536.69.40.40

Nominal Gerilim

350V

Kurşunsuz

Lead Free

Montaj

Through Hole

Housing Material

Polyester

Din Conformance

NO

Insertion Forcemax

3.0024 N

Kurşunsuz Kodu

yes

Reference Standard

UL

ECCN Kodu

EAR99

Mating Post Length

6.75mm

Reliability

COMMERCIAL

Iec Conformance

NO

RoHS Durumu

RoHS Compliant

Contact Materials

Brass

Voltage Rated Ac

350V

Orientation

Vertical

Option

GENERAL PURPOSE

Durability

30 Cycles

Pozisyon Sayısı

10

Mixed Contacts

NO

Contact Style

SQ PIN-SKT

Min. Çalışma Sıcaklığı

-55°C

Reach Svhc

No SVHC

Radyasyon Dayanımı

No

Additional Feature

C-GRID III

Body Depth

0.098 inch

Sıra Sayısı

1

Contact Lengthmating

6.7564mm

Pitch

2.54mm

Contact Resistance

20mOhm

Max Voltage Rating Dc

350.35kV

Rated Current Signal

3A

Pcb Contact Pattern

RECTANGULAR

Lead Length

2.9mm

Contact Plating

Tin

Filter Feature

NO
