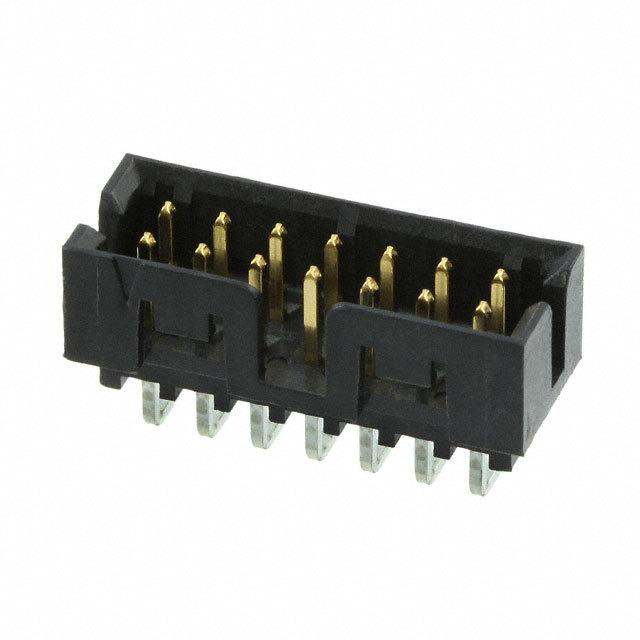

87833-2220

Teknik Özellikler

Reach Svhc

No SVHC

RoHS Durumu

RoHS Compliant

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Parça Durumu

Active

Fabrika Tedarik Süresi

9 Weeks

Contact Lengthmating

3.5814mm

JESD-609 Kodu

e3

Reliability

COMMERCIAL

Akım Değeri

2A

Housing Material

Thermoplastic

Additional Feature

POLARIZED

Insulation Resistance

1000000000Ohm

Contact Materials

Brass

Montaj

Through Hole

Contact Plating

Gold

Bodyshell Style

RECEPTACLE

Min. Çalışma Sıcaklığı

-55°C

Glow Wire Compliant

Non-compliant

Pitch

2mm

Yayın Yılı

2011

Lead Pitch

2mm

Sıra Sayısı

2

Maks. Çalışma Sıcaklığı

105°C

Contact Pattern

RECTANGULAR

Reference Standard

UL

Ul Flammability Code

94V-0

Flammability Rating

UL94 V-0

Connector Type

Male Pin

Gender

Male

Number Of Pcb Rows

2

Iec Conformance

NO

Rated Current Signal

2A

Number Of Conductors

ONE

Mixed Contacts

NO

Pcb Contact Pattern

RECTANGULAR

Contact Style

SQ PIN-SKT

Orientation

Right Angle

Renk

Black

Terminal

Solder

Pozisyon Sayısı

22
