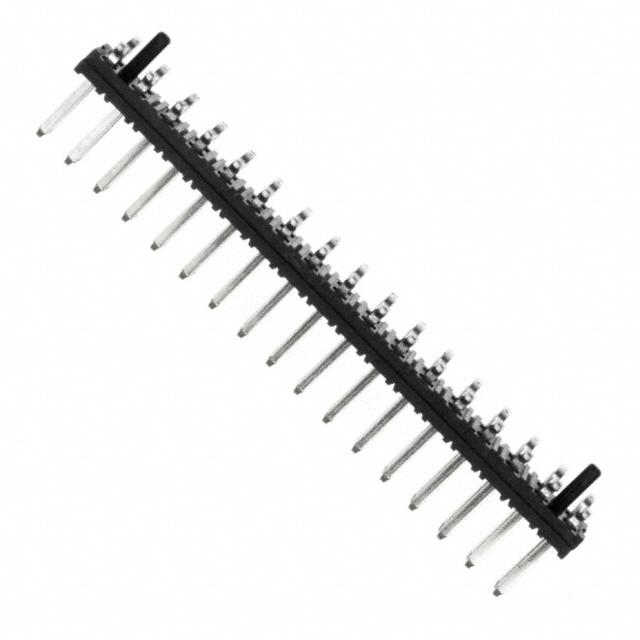

87759-3450

Teknik Özellikler

Body Length Or Diameter

1.335 inch

ECCN Kodu

EAR99

Terminal

Solder

Iec Conformance

NO

Max Voltage Rating Ac

125V

Reliability

COMMERCIAL

Glow Wire Compliant

Non-compliant

Contact Materials

Bronze

Filter Feature

NO

Mil Conformance

NO

Ul Flammability Code

94V-0

Contact Lengthmating

3.81mm

Flammability Rating

UL94 V-0

Montaj

Surface Mount

HTS Kodu

8536.69.40.40

Option

GENERAL PURPOSE

Housing Material

Thermoplastic

Contact Finish Mating

NOT SPECIFIED

Body Breadth

0.157 inch

Contact Plating

Gold

Bodyshell Style

RECEPTACLE

RoHS Durumu

RoHS Compliant

Renk

Black

Min. Çalışma Sıcaklığı

-55°C

Akım Değeri

2A

Body Depth

0.059 inch

Pozisyon Sayısı

34

Total Number Of Contacts

34

Kurşunsuz

Contains Lead

Pitch

2mm

Maks. Çalışma Sıcaklığı

105°C

Lead Pitch

2mm

Number Of Conductors

ONE

Row Spacing Mating

2.0066 mm

Insulation Resistance

1000000000Ohm

Plating Thickness

15μin

Voltage Rated Dc

125V

Durability

100 Cycles

Contact Gender

Male

Contact Style

SQ PIN-SKT
