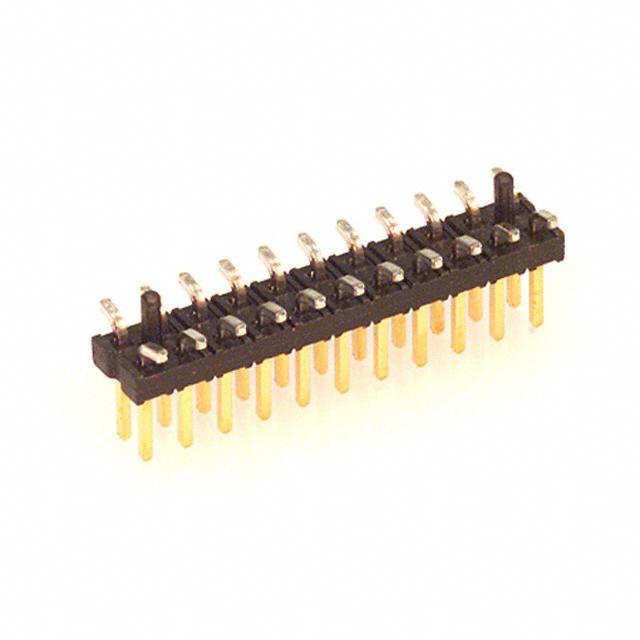

87759-2650

Teknik Özellikler

Contact Style

SQ PIN-SKT

Contact Gender

Male

Durability

100 Cycles

Voltage Rated Dc

125V

Plating Thickness

15μin

Insulation Resistance

1000000000Ohm

Lead Pitch

2mm

Number Of Conductors

ONE

Row Spacing Mating

2.0066 mm

Pitch

2mm

Maks. Çalışma Sıcaklığı

105°C

Kurşunsuz

Lead Free

Total Number Of Contacts

26

Number Of Pcb Rows

2

Rated Current Signal

2A

Kurşunsuz Kodu

yes

Mixed Contacts

NO

Parça Durumu

Active

Connector Type

Male Pin

Fabrika Tedarik Süresi

9 Weeks

Pcb Contact Pattern

RECTANGULAR

Din Conformance

NO

Orientation

Vertical

Yayın Yılı

2011

Sıra Sayısı

2

Dielectric Withstanding Voltage

500VAC V

Contact Pattern

RECTANGULAR

Contact Lengthmating

3.81mm

Mil Conformance

NO

Ul Flammability Code

94V-0

Filter Feature

NO

Max Voltage Rating Ac

125V

Glow Wire Compliant

Non-compliant

Contact Materials

Bronze

Reliability

COMMERCIAL

Terminal

Solder

Iec Conformance

NO

ECCN Kodu

EAR99

Pozisyon Sayısı

26

Body Depth

0.059 inch
