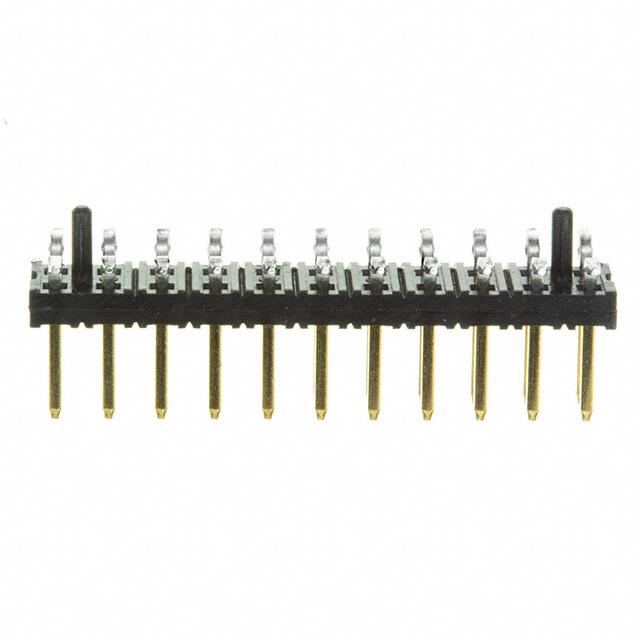

87759-2250

Teknik Özellikler

Terminal

Solder

Iec Conformance

NO

Max Voltage Rating Ac

125V

Glow Wire Compliant

Non-compliant

Contact Materials

Bronze

Reliability

COMMERCIAL

ECCN Kodu

EAR99

Contact Lengthmating

3.81mm

Filter Feature

NO

Ul Flammability Code

94V-0

Mil Conformance

NO

Housing Material

Plastic

Contact Finish Mating

NOT SPECIFIED

Body Breadth

0.157 inch

Contact Plating

Gold

Bodyshell Style

RECEPTACLE

Montaj

Surface Mount

HTS Kodu

8536.69.40.40

Flammability Rating

UL94 V-0

Option

GENERAL PURPOSE

Pozisyon Sayısı

22

Body Depth

0.059 inch

RoHS Durumu

RoHS Compliant

Akım Değeri

2A

Min. Çalışma Sıcaklığı

-55°C

Renk

Black

Pitch

2mm

Maks. Çalışma Sıcaklığı

105°C

Total Number Of Contacts

22

Kurşunsuz

Lead Free

Contact Style

SQ PIN-SKT

Insulation Resistance

1000000000Ohm

Plating Thickness

15μin

Number Of Conductors

ONE

Lead Pitch

2mm

Row Spacing Mating

2.0066 mm

Durability

100 Cycles

Voltage Rated Dc

125V

Din Conformance

NO

Orientation

Vertical
