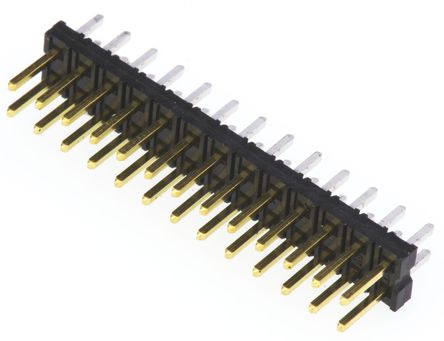

87758-2616

Teknik Özellikler

Contact Style

SQ PIN-SKT

Contact Gender

Male

Voltage Rated Dc

125V

Durability

100 Cycles

Row Spacing Mating

2.0066 mm

Number Of Conductors

ONE

Lead Pitch

2mm

Insulation Resistance

1000000000Ohm

Plating Thickness

15μin

Pitch

2mm

Maks. Çalışma Sıcaklığı

105°C

Kurşunsuz

Contains Lead

Total Number Of Contacts

26

Number Of Pcb Rows

2

Rated Current Signal

2A

Kurşunsuz Kodu

yes

Parça Durumu

Active

Mixed Contacts

NO

Fabrika Tedarik Süresi

9 Weeks

Connector Type

Male Pin

Pcb Contact Pattern

RECTANGULAR

Din Conformance

NO

Yayın Yılı

2011

Orientation

Vertical

Contact Pattern

RECTANGULAR

Sıra Sayısı

2

Contact Lengthmating

3.9878mm

Ul Flammability Code

94V-0

Mil Conformance

NO

Filter Feature

NO

Reliability

COMMERCIAL

Contact Materials

Bronze

Glow Wire Compliant

Non-compliant

Terminal

Solder

Iec Conformance

NO

Body Depth

0.059 inch

Pozisyon Sayısı

26

RoHS Durumu

RoHS Compliant

Renk

Black

Min. Çalışma Sıcaklığı

-55°C
