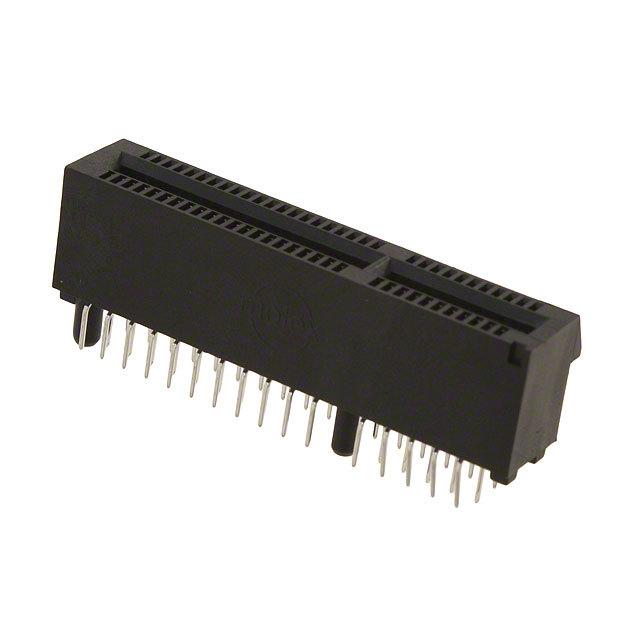

87715-9105

Teknik Özellikler

Mil Conformance

NO

Ul Flammability Code

94V-0

Filter Feature

NO

Withdrawl Forcemin

.139 N

Lead Length

3mm

Body Length Or Diameter

1.535 inch

Contact Materials

Bronze

Length Termination

0.118 inch

Reliability

COMMERCIAL

Iec Conformance

NO

Terminal

Solder

Akım Değeri

1.1A

Min. Çalışma Sıcaklığı

-55°C

Renk

Black

RoHS Durumu

RoHS Compliant

Max Voltage Rating Dc

5.05kV

Pozisyon Sayısı

64

Body Depth

0.443 inch

Additional Feature

PANEL MOUNTABLE

Option

GENERAL PURPOSE

Radyasyon Dayanımı

No

Montaj

Through Hole

JESD-609 Kodu

e3

Body Breadth

0.348 inch

Contact Plating

Gold

Reference Standard

UL

Durability

50 Cycles

Plating Thickness

15μin

Insulation Resistance

1000000000Ohm

Lead Pitch

1mm

Number Of Conductors

ONE

Row Spacing Mating

2 mm

Contact Style

BELLOWED TYPE

Insertion Forcemax

1.1676 N

Card Thickness

1.5748mm

Insulation Materials

Nylon

Kurşunsuz

Lead Free

Contact Resistance

30mOhm

Total Number Of Contacts

64

Maks. Çalışma Sıcaklığı

85°C
