Teknik Özellikler
- Body Depth
- 0.449 inch
- Mixed Contacts
- NO
- Rated Current Signal
- 1A
- Montaj
- Cable, Free Hanging
- Sıra Sayısı
- 2

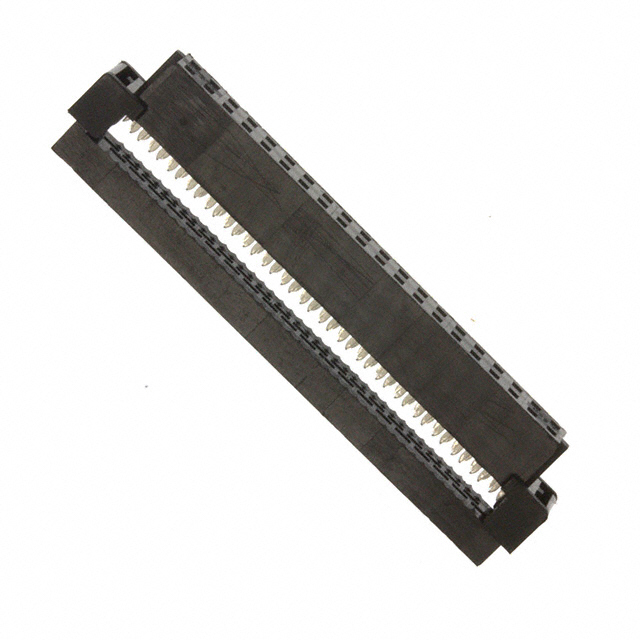

- Connector Type
- IDC, Receptacle, Socket
- Kurşunsuz Kodu
- yes
- Option
- GENERAL PURPOSE
- Iec Conformance
- NO
- Contact Resistance
- 30mOhm
- Pitch
- 2mm
- Durability
- 100 Cycles
- RoHS Durumu
- RoHS Compliant
- Contact Plating
- Gold
- Maks. Çalışma Sıcaklığı
- 85°C
- Reliability
- COMMERCIAL
- Kurşunsuz
- Lead Free
- Min. Çalışma Sıcaklığı
- -20°C
- Din Conformance
- NO
- Body Length Or Diameter
- 1.837 inch
- Lead Pitch
- 2mm
- Fabrika Tedarik Süresi
- 9 Weeks
- Insulation Resistance
- 5000000000Ohm
- Row Spacing Mating
- 2.0066 mm
- Wirecable Type
- Ribbon
- Reference Standard
- UL, CSA
- ECCN Kodu
- EAR99
- Additional Feature
- MILLI-GRID, POLARIZED
- Mating Information
- MULTIPLE MATING PARTS AVAILABLE
- Mil Conformance
- NO
- Polarization Key
- POLARIZED HOUSING
- Insertion Forcemax
- 1.946 N
- Gender
- Receptacle
- Renk
- Black
- Glow Wire Compliant
- Non-compliant
- Akım Değeri
- 1A
- Yayın Yılı
- 2006
- Contact Gender
- Female
- Filter Feature
- NO
- Contact Materials
- Copper
