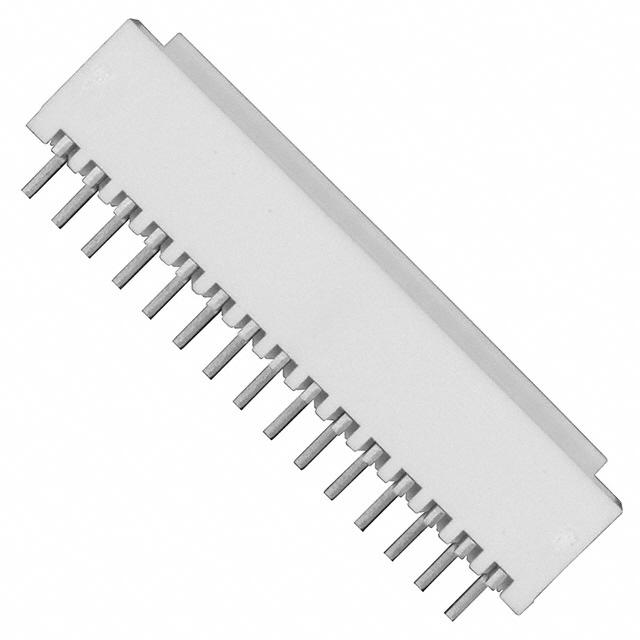

87438-1543

Teknik Özellikler

Flammability Rating

UL94 V-0

Total Number Of Contacts

15

Pitch

1.5mm

HTS Kodu

8536.69.40.40

Dielectric Withstanding Voltage

700VAC V

Number Of Pcb Rows

1

Yayın Yılı

2004

Lead Pitch

1.5mm

Reach Svhc

No SVHC

Montaj

Surface Mount

Fabrika Tedarik Süresi

11 Weeks

Number Of Conductors

ONE

Akım Değeri

3A

Pcb Contact Pattern

RECTANGULAR

Mixed Contacts

NO

Contact Resistance

40mOhm

Din Conformance

NO

Ambalaj

Cut Tape

Body Length Or Diameter

0.937 inch

Contact Style

SQ PIN-SKT

Contact Materials

Brass

Body Depth

0.305 inch

Housing Material

Polyamide

Voltage Rated Dc

350V

Glow Wire Compliant

Non-compliant

Maks. Çalışma Sıcaklığı

105°C

Reference Standard

UL

Rated Current Signal

2.5A

Ul Flammability Code

94V-0

Sıra Sayısı

1

Insulation Resistance

1GOhm

Terminal

Solder

Polarization Key

POLARIZED HOUSING

Filter Feature

NO

Contact Plating

Tin

Kurşunsuz Kodu

yes

Parça Durumu

Active

Max Voltage Rating Ac

350V

ECCN Kodu

EAR99

Min. Çalışma Sıcaklığı

-55°C
