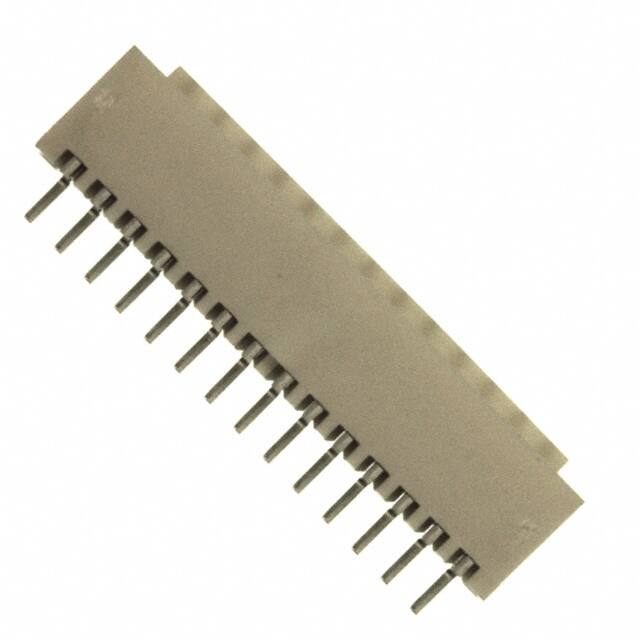

87438-1443

Teknik Özellikler

Dielectric Withstanding Voltage

700VAC V

Mating Contact Pitch

0.059 inch

Number Of Pcb Rows

1

Yayın Yılı

2004

Lead Pitch

1.5mm

Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

17 Weeks

Number Of Conductors

ONE

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pcb Contact Pattern

RECTANGULAR

Akım Değeri

3A

Contact Resistance

40mOhm

Din Conformance

NO

Reach Svhc

No SVHC

Montaj

Surface Mount

Contact Materials

Brass Alloy

Body Depth

0.305 inch

Housing Material

Thermoplastic

Voltage Rated Dc

350V

Glow Wire Compliant

Non-compliant

Style

Board to Cable/Wire

Ambalaj

Cut Tape (CT)

Body Length Or Diameter

0.878 inch

Nominal Gerilim

250V

Sıra Sayısı

1

Reference Standard

UL

Rated Current Signal

2.5A

Insulation Height

0.175 4.45mm

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Ul Flammability Code

94V-0

Pitch Mating

0.059 1.50mm

Parça Durumu

Active

Contact Shape

Square

Insulation Resistance

1GOhm

Terminal

Solder

Polarization Key

POLARIZED HOUSING

Filter Feature

NO

Kurşunsuz Kodu

yes

Çalışma Sıcaklığı

-55°C~105°C
