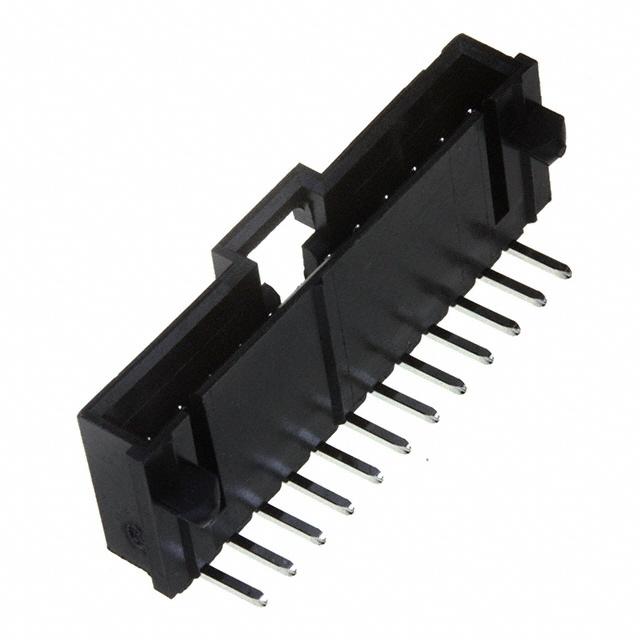

70555-0011

Teknik Özellikler

Option

GENERAL PURPOSE

Connector Type

Male Pin

Number Of Pcb Rows

1

Din Conformance

NO

Fabrika Tedarik Süresi

8 Weeks

Reliability

COMMERCIAL

RoHS Durumu

RoHS Compliant

Rated Current Signal

3A

Filter Feature

NO

Contact Plating

Tin

Contact Style

SQ PIN-SKT

JESD-609 Kodu

e3

Elv

Compliant

Bodyshell Style

RECEPTACLE

Total Number Of Contacts

12

Dielectric Withstanding Voltage

600VAC V

Orientation

Right Angle

Pitch

2.54mm

Material

Brass

Pozisyon Sayısı

12

Reference Standard

UL, CSA

Polarization Key

CTR W/GUIDE SLOTS

Nominal Gerilim

250V

Montaj

Through Hole

Maks. Çalışma Sıcaklığı

105°C

Parça Durumu

Active

Ul Flammability Code

94V-0

Number Of Conductors

ONE

Min. Çalışma Sıcaklığı

-40°C

Contact Lengthmating

6.096mm

Mixed Contacts

NO

Body Depth

0.535 inch

Sıra Sayısı

1

Additional Feature

SL

Yayın Yılı

2011

Renk

Black

Mil Conformance

NO

Contact Materials

Bronze

Housing Material

Thermoplastic

ECCN Kodu

EAR99
