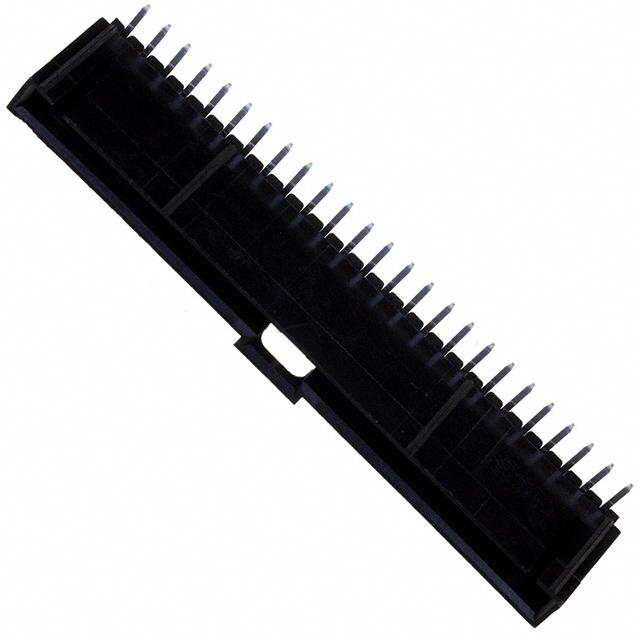

70553-0024

Teknik Özellikler

Pcb Contact Pattern

RECTANGULAR

HTS Kodu

8536.69.40.40

Flammability Rating

UL94 V-0

Voltage Rated Dc

250V

Iec Conformance

NO

ECCN Kodu

EAR99

Terminal

Solder

Kurşunsuz Kodu

yes

Body Breadth

0.275 inch

Akım Değeri

3A

Contact Pattern

RECTANGULAR

Glow Wire Compliant

Non-compliant

Body Length Or Diameter

2.6 inch

Gender

Male

Mixed Contacts

NO

Body Depth

0.535 inch

Additional Feature

LATCHED

Sıra Sayısı

1

Contact Lengthmating

6.096mm

Contact Materials

Bronze

Housing Material

Thermoplastic

Yayın Yılı

2009

Renk

Black

Mil Conformance

NO

Reference Standard

UL

Kurşunsuz

Contains Lead

Material

Brass

Pozisyon Sayısı

25

Orientation

Right Angle

Pitch

2.54mm

Total Number Of Contacts

25

Min. Çalışma Sıcaklığı

-40°C

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Number Of Conductors

ONE

Maks. Çalışma Sıcaklığı

105°C

Ul Flammability Code

94V-0

Parça Durumu

Active

Lead Pitch

2.54mm

Montaj

Through Hole

Din Conformance

NO
