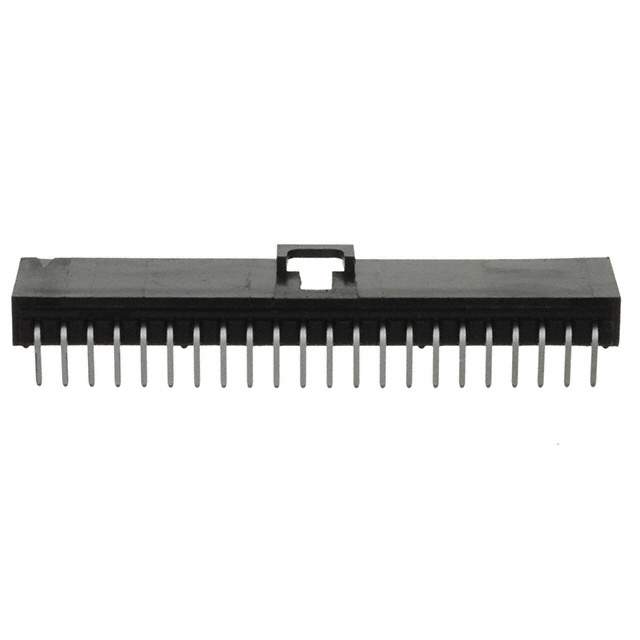

70553-0021

Teknik Özellikler

Connector Type

Male Pin

Option

GENERAL PURPOSE

Number Of Pcb Rows

1

RoHS Durumu

RoHS Compliant

Din Conformance

NO

Reliability

COMMERCIAL

Fabrika Tedarik Süresi

10 Weeks

Contact Style

SQ PIN-SKT

Filter Feature

NO

Contact Plating

Gold

Contact Resistance

30mOhm

Elv

Compliant

JESD-609 Kodu

e3

Bodyshell Style

RECEPTACLE

Total Number Of Contacts

22

Pitch

2.54mm

Orientation

Right Angle

Pozisyon Sayısı

22

Material

Brass

Kurşunsuz

Contains Lead

Reference Standard

UL

Montaj

Through Hole

Lead Pitch

2.54mm

Maks. Çalışma Sıcaklığı

105°C

Parça Durumu

Active

Ul Flammability Code

94V-0

Number Of Conductors

ONE

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Min. Çalışma Sıcaklığı

-40°C

Contact Lengthmating

6.096mm

Body Depth

0.535 inch

Sıra Sayısı

1

Additional Feature

LATCHED

Gender

Male

Mixed Contacts

NO

Body Length Or Diameter

2.3 inch

Mil Conformance

NO

Renk

Black

Yayın Yılı

2009

Housing Material

Thermoplastic
