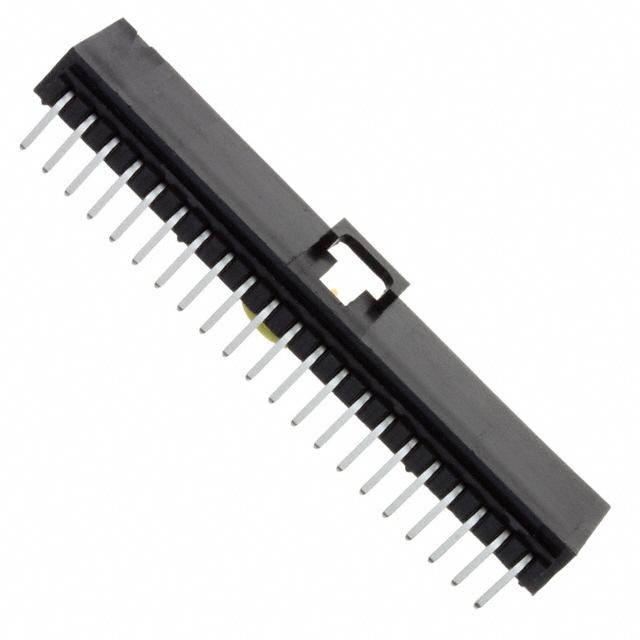

70553-0020

Teknik Özellikler

Min. Çalışma Sıcaklığı

-40°C

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Number Of Conductors

ONE

Maks. Çalışma Sıcaklığı

105°C

Parça Durumu

Active

Ul Flammability Code

94V-0

Lead Pitch

2.54mm

Montaj

Through Hole

Reference Standard

UL

Kurşunsuz

Contains Lead

Material

Brass

Pozisyon Sayısı

21

Orientation

Right Angle

Pitch

2.54mm

Total Number Of Contacts

21

Bodyshell Style

RECEPTACLE

JESD-609 Kodu

e3

Elv

Compliant

Filter Feature

NO

Contact Plating

Gold

Contact Resistance

30mOhm

Contact Style

SQ PIN-SKT

Din Conformance

NO

Reliability

COMMERCIAL

Fabrika Tedarik Süresi

6 Weeks

RoHS Durumu

RoHS Compliant

Number Of Pcb Rows

1

Option

GENERAL PURPOSE

Connector Type

Male Pin

Terminal

Solder

Kurşunsuz Kodu

yes

Body Breadth

0.275 inch

Akım Değeri

3A

Contact Pattern

RECTANGULAR

Glow Wire Compliant

Non-compliant

Pcb Contact Pattern

RECTANGULAR

HTS Kodu

8536.69.40.40

Flammability Rating

UL94 V-0

Voltage Rated Dc

250V

Iec Conformance

NO
