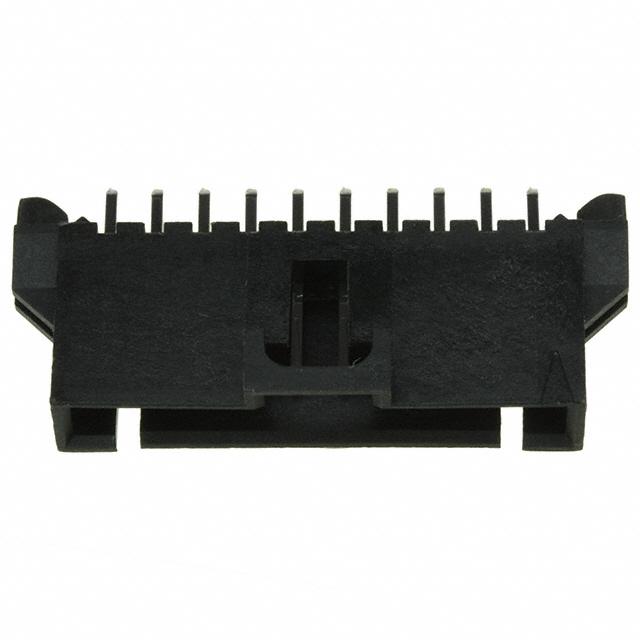

70545-0009

Teknik Özellikler

Number Of Conductors

ONE

Min. Çalışma Sıcaklığı

-40°C

Montaj

Through Hole

Lead Pitch

2.54mm

Ul Flammability Code

94V-0

Parça Durumu

Active

Maks. Çalışma Sıcaklığı

105°C

Pozisyon Sayısı

10

Material

Brass

Kurşunsuz

Lead Free

Reference Standard

UL

Dielectric Withstanding Voltage

840VAC V

Total Number Of Contacts

10

Pitch

2.54mm

Orientation

Vertical

Elv

Compliant

JESD-609 Kodu

e3

Bodyshell Style

RECEPTACLE

Reach Svhc

Unknown

Contact Style

SQ PIN-SKT

Contact Plating

Tin

Contact Resistance

30mOhm

Filter Feature

NO

Number Of Pcb Rows

1

Rated Current Signal

3A

RoHS Durumu

RoHS Compliant

Fabrika Tedarik Süresi

6 Weeks

Reliability

COMMERCIAL

Din Conformance

NO

Connector Type

Male Pin

Option

GENERAL PURPOSE

Body Breadth

0.26 inch

Kurşunsuz Kodu

yes

Terminal

Through Hole

Glow Wire Compliant

Non-compliant

Contact Pattern

RECTANGULAR

Akım Değeri

3A

Flammability Rating

UL94 V-0

HTS Kodu

8536.69.40.40

Pcb Contact Pattern

RECTANGULAR
