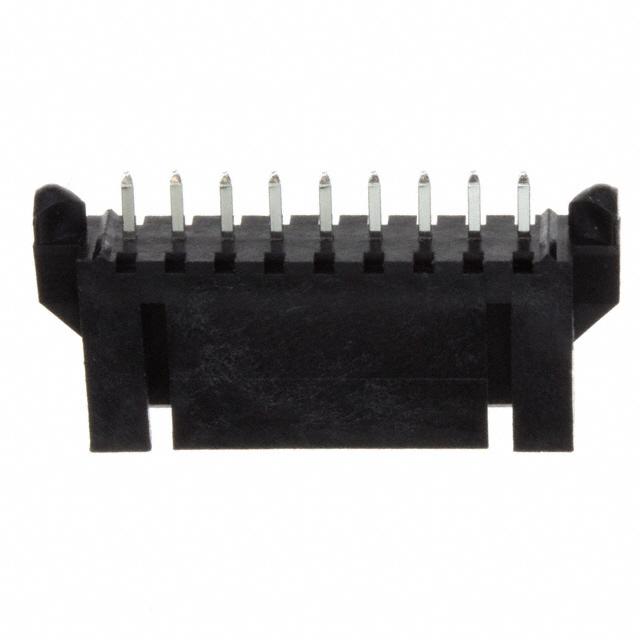

70545-0008

Teknik Özellikler

Voltage Rated Dc

250V

Iec Conformance

NO

Pcb Contact Pattern

RECTANGULAR

Flammability Rating

UL94 V-0

Akım Değeri

3A

Insulation Resistance

1GOhm

Contact Pattern

RECTANGULAR

Glow Wire Compliant

Non-compliant

Terminal

Solder

Kurşunsuz Kodu

yes

Body Breadth

0.26 inch

Contact Lengthmating

6.096mm

Mixed Contacts

NO

Gender

Male

Sıra Sayısı

1

Additional Feature

LATCHED, POLARIZED

Body Depth

0.465 inch

Yayın Yılı

2011

Mil Conformance

NO

Renk

Black

Contact Materials

Bronze

Housing Material

Thermoplastic

Orientation

Vertical

Pitch

2.54mm

Total Number Of Contacts

9

Dielectric Withstanding Voltage

840VAC V

Reference Standard

UL

Material

Brass

Pozisyon Sayısı

9

Parça Durumu

Active

Maks. Çalışma Sıcaklığı

105°C

Lead Pitch

2.54mm

Montaj

Through Hole

Min. Çalışma Sıcaklığı

-40°C

Number Of Conductors

ONE

Option

GENERAL PURPOSE

Connector Type

Male Pin

Fabrika Tedarik Süresi

8 Weeks

Reliability

COMMERCIAL

Din Conformance

NO
