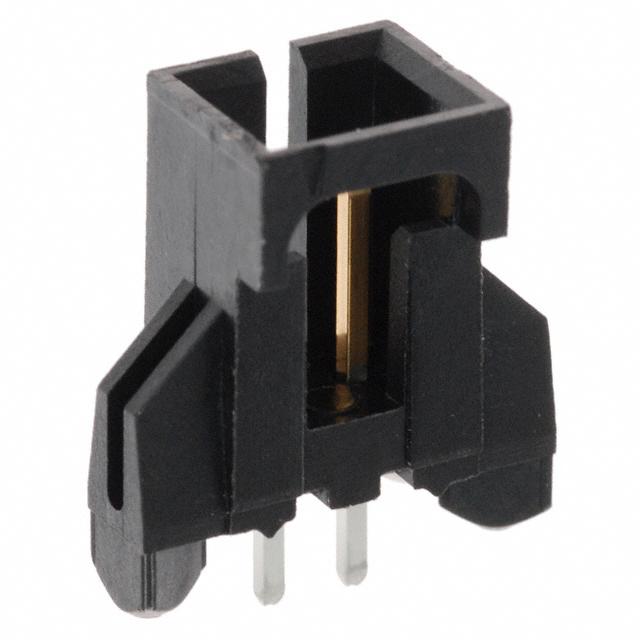

70545-0001

Teknik Özellikler

Contact Materials

Bronze

Housing Material

Thermoplastic

Yayın Yılı

2011

Mil Conformance

NO

Renk

Black

Radyasyon Dayanımı

No

Mixed Contacts

NO

Gender

Receptacle

Additional Feature

LATCHED, POLARIZED

Sıra Sayısı

1

Contact Lengthmating

6.096mm

Terminal

Solder

Kurşunsuz Kodu

yes

Akım Değeri

3A

Insulation Resistance

1GOhm

Depth

6.6mm

Uzunluk

12.4mm

Glow Wire Compliant

Non-compliant

Contact Pattern

RECTANGULAR

Pcb Contact Pattern

RECTANGULAR

HTS Kodu

8536.69.40.40

Flammability Rating

UL94 V-0

Voltage Rated Dc

250V

Iec Conformance

NO

ECCN Kodu

EAR99

JESD-609 Kodu

e3

Elv

Compliant

Contact Plating

Tin

Contact Resistance

30mOhm

Filter Feature

NO

Reach Svhc

Unknown

Contact Style

SQ PIN-SKT

Reliability

COMMERCIAL

Fabrika Tedarik Süresi

7 Weeks

Din Conformance

NO

Rated Current Signal

3A

RoHS Durumu

RoHS Compliant

Number Of Pcb Rows

1

Option

GENERAL PURPOSE

Connector Type

Male Pin
