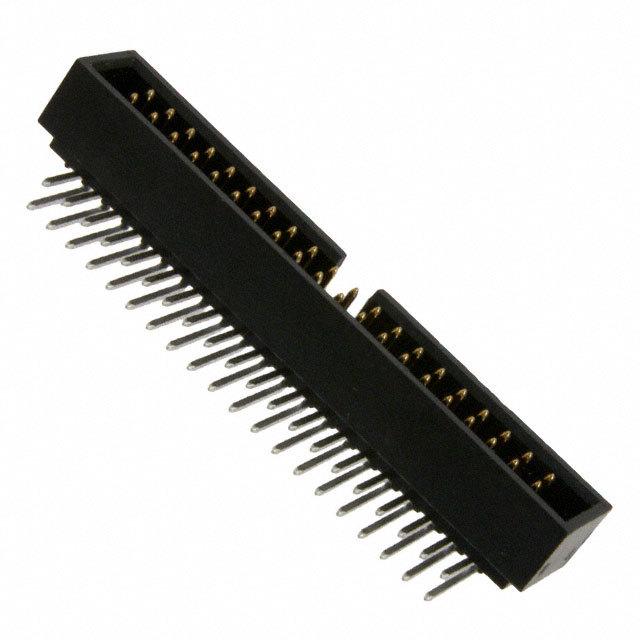

70247-4051

Teknik Özellikler

Number Of Conductors

ONE

Connector Type

Male Pin

Number Of Pcb Rows

2

Dielectric Withstanding Voltage

900VAC V

Yayın Yılı

2011

Orientation

Right Angle

Parça Durumu

Active

Pitch

2.54mm

Radyasyon Dayanımı

No

Iec Conformance

NO

Renk

Black

Reach Svhc

Unknown

Max Voltage Rating Dc

250V

Glow Wire Compliant

Non-compliant

Ul Flammability Code

94V-0

Elv

Compliant

Lead Pitch

2.54mm

Insulation Resistance

12GOhm

ECCN Kodu

EAR99

Flammability Rating

UL94 V-0

Body Breadth

0.35 inch

Pcb Contact Pattern

RECTANGULAR

JESD-609 Kodu

e3

Contact Lengthmating

6.096mm

Fabrika Tedarik Süresi

9 Weeks

Row Spacing Mating

2.54 mm

Min. Çalışma Sıcaklığı

-55°C

Polarization Key

POLARIZED HOUSING

Kurşunsuz

Lead Free

Kurşunsuz Kodu

yes

Contact Pattern

RECTANGULAR

RoHS Durumu

RoHS Compliant

Contact Style

SQ PIN-SKT

Additional Feature

SHROUDED

Option

GENERAL PURPOSE

Bodyshell Style

RECEPTACLE

Montaj

Through Hole

Total Number Of Contacts

40

Terminal

Solder

Withdrawl Forcemin

8.896 N
