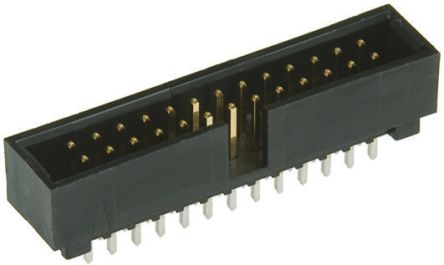

70246-3001

Teknik Özellikler

RoHS Durumu

RoHS Compliant

Contact Style

SQ PIN-SKT

Additional Feature

SHROUDED

Yükseklik

9.27mm

Montaj

Through Hole

Total Number Of Contacts

30

Option

GENERAL PURPOSE

Bodyshell Style

RECEPTACLE

Sıra Sayısı

2

Gender

Male

Contact Plating

Gold

Terminal

Through Hole

Plating Thickness

15μin

Mil Conformance

NO

Mixed Contacts

NO

Pozisyon Sayısı

30

HTS Kodu

8536.69.40.40

Reference Standard

UL, CSA

Contact Materials

Bronze

Din Conformance

NO

Akım Değeri

2.5A

Reliability

COMMERCIAL

Body Depth

0.365 inch

Filter Feature

NO

Housing Material

Polyester

Number Of Conductors

ONE

Yayın Yılı

2009

Uzunluk

45.7mm

Connector Type

Male Pin

Number Of Pcb Rows

2

Dielectric Withstanding Voltage

900VAC V

Orientation

Vertical

Parça Durumu

Active

Renk

Black

Reach Svhc

Unknown

Ul Flammability Code

94V-0

Glow Wire Compliant

Non-compliant

Pitch

2.54mm

Iec Conformance

NO

Genişlik

8.89mm
