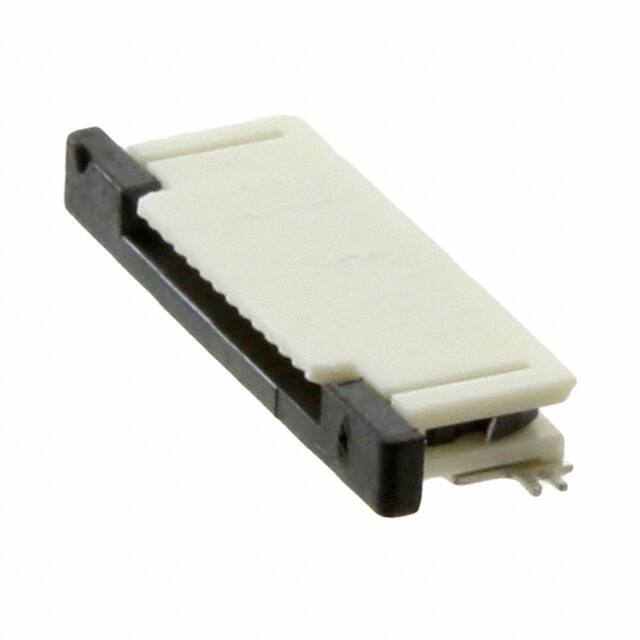

52745-1397

Teknik Özellikler

RoHS Durumu

ROHS3 Compliant

Reach Svhc

Unknown

Filter Feature

NO

Reference Standard

UL

Akım Değeri

500mA

Cable End Type

Straight

Additional Feature

EASY-ON, POLARIZED

Fabrika Tedarik Süresi

15 Weeks

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Locking Feature

Slide Lock

Contact Style

BELLOWED TYPE

Parça Durumu

Active

Çalışma Sıcaklığı

-20°C~85°C

Connector Type

FFC/FPC CONNECTOR

Seri

52745

Body Length Or Diameter

0.496 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reliability

COMMERCIAL

Insulator Color

WHITE

Elv

Compliant

Pitch

0.020 0.50mm

Pcb Contact Pattern

RECTANGULAR

Nominal Gerilim

50V

Insertion Forcemax

ZIF N

Plating Thickness

39μin

Mixed Contacts

NO

Terminal

Solder

Ul Flammability Code

94V-0

JESD-609 Kodu

e4

Contact Materials

Phosphor Bronze

Contact Finish

Gold

Option

GENERAL PURPOSE

Body Breadth

0.079 inch

Insulation Resistance

50000000Ohm

Mating Cycles

20

Montaj Tipi

Surface Mount, Right Angle

Material

Bronze

Yayın Yılı

2011

Orientation

Right Angle

Ambalaj

Cut Tape (CT)
