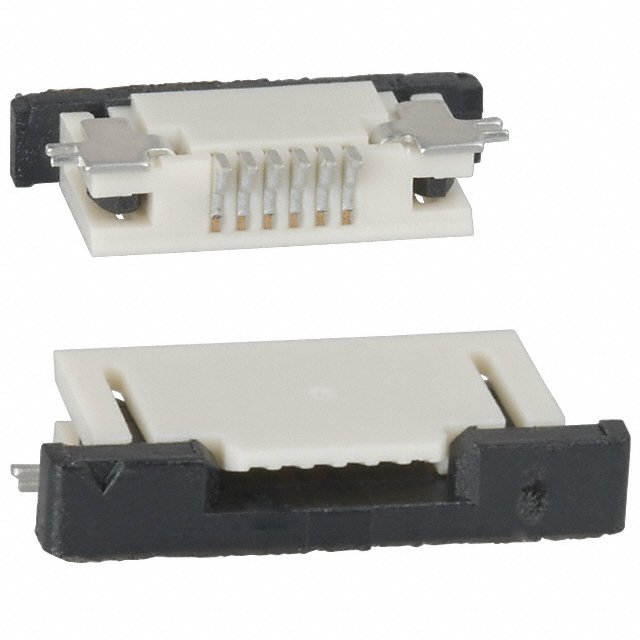

52745-0696

Teknik Özellikler

Durability

20 Cycles

Contact Plating

Tin

Min. Çalışma Sıcaklığı

-20°C

Lead Pitch

500μm

Montaj

Surface Mount

Iec Conformance

NO

Din Conformance

NO

Ambalaj

Tape & Reel

Contact Location

Top

Yayın Yılı

2002

Orientation

Right Angle

Reference Standard

UL

Akım Değeri

500mA

Insulation Resistance

50MOhm

Body Breadth

0.079 inch

RoHS Durumu

RoHS Compliant

Filter Feature

NO

Maks. Çalışma Sıcaklığı

85°C

Option

GENERAL PURPOSE

Contact Materials

Bronze

Ul Flammability Code

94V-0

Terminal

Solder

Mixed Contacts

NO

Insertion Forcemax

ZIF N

Gender

Female

Flammability Rating

UL94 V-0

Sıra Sayısı

1

Voltage Rated Dc

50V

Pcb Contact Pattern

RECTANGULAR

Mil Conformance

NO

Actuator Material

Glass, Polyphenylene

Contact Resistance

20mOhm

Contact Finish Mating

NOT SPECIFIED

Pitch

500μm

Housing Material

Polyamide

Reliability

COMMERCIAL

Insulator Color

WHITE

Wirecable Type

Flat Flex

Body Length Or Diameter

0.358 inch

Number Of Contacts

6
