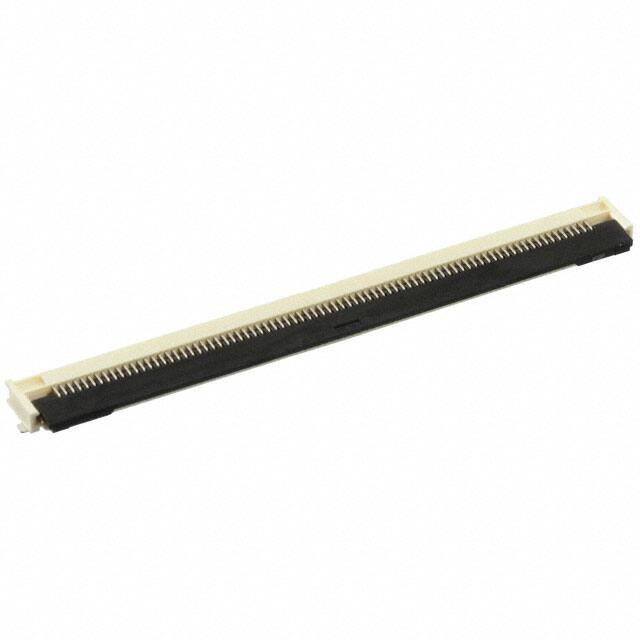

5051108091

Teknik Özellikler

JESD-609 Kodu

e4

Contact Pattern

RECTANGULAR

Contact Materials

Phosphor Bronze

Body Length Or Diameter

1.759 inch

Insulation Resistance

50000000Ohm

Cable End Type

Tabbed, Tapered

Contact Finish Thickness

1.97μin 0.050μm

Height Above Board

0.075 1.90mm

Pitch

0.020 0.50mm

Contact Finish

Gold

Seri

Easy-On FD19 505110

Material Flammability Rating

UL94 V-0

Actuator Material

Polyamide (PA), Nylon, Glass Filled

Housing Color

Beige

Contact Gender

FEMALE

Pcb Contact Pattern

RECTANGULAR

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Ul Flammability Code

94V-0

Ambalaj

Tape & Reel (TR)

Current Rating Amps

0.5A

Connector Type

FFC/FPC CONNECTOR

Option

GENERAL PURPOSE

Total Number Of Contacts

80

Reliability

COMMERCIAL

Flat Flex Type

FFC, FPC

Reference Standard

UL

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Contact Resistance

40mOhm

Montaj Tipi

Surface Mount, Right Angle

Actuatorcolor

Black

Terminal

Solder

Iec Conformance

NO

RoHS Durumu

ROHS3 Compliant

Mounting Option1

LOCKING

Fabrika Tedarik Süresi

16 Weeks

Locking Feature

Flip Lock

Mil Conformance

NO

Mating Cycles

25

Body Depth

0.159 inch

Nominal Gerilim

50V
