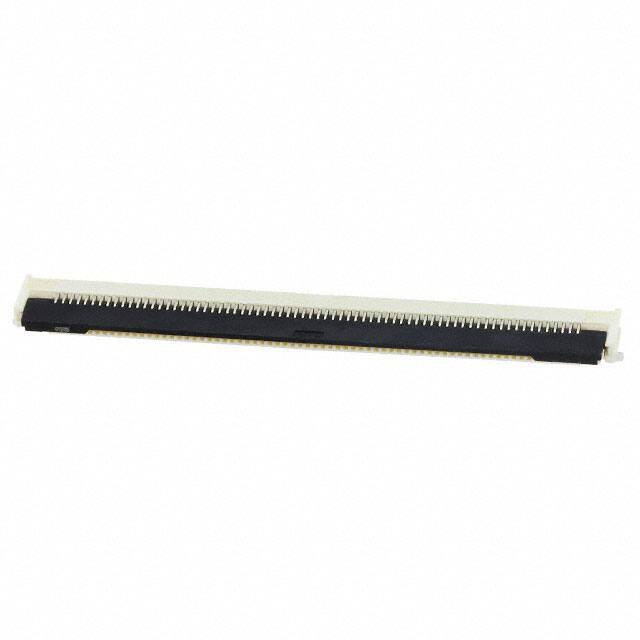

5051107091

Teknik Özellikler

Cable End Type

Tabbed, Tapered

Contact Finish Thickness

1.97μin 0.050μm

Nominal Gerilim

50V

Locking Feature

Flip Lock

Contact Materials

Phosphor Bronze

Mil Conformance

NO

Mating Cycles

25

HTS Kodu

8536.69.40.51

RoHS Durumu

ROHS3 Compliant

Mounting Option1

LOCKING

Fabrika Tedarik Süresi

16 Weeks

Housing Color

Beige

Contact Gender

FEMALE

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Parça Durumu

Active

Material Flammability Rating

UL94 V-0

Actuator Material

Polyamide (PA), Nylon, Glass Filled

Seri

Easy-On FD19 505110

Height Above Board

0.075 1.90mm

Pitch

0.020 0.50mm

Contact Finish

Gold

Total Number Of Contacts

70

Reliability

COMMERCIAL

Flat Flex Type

FFC, FPC

Din Conformance

NO

ECCN Kodu

EAR99

Yayın Yılı

2015

Option

GENERAL PURPOSE

Current Rating Amps

0.5A

Durability

10 Cycles

Pozisyon Sayısı

70

Connector Type

FFC/FPC CONNECTOR

Mixed Contacts

NO

Ambalaj

Tape & Reel (TR)

Sıra Sayısı

1

Filter Feature

NO

Ffc Fcb Thickness

0.30mm

Çalışma Sıcaklığı

-40°C~105°C

Plating Thickness

2μin

Iec Conformance

NO
