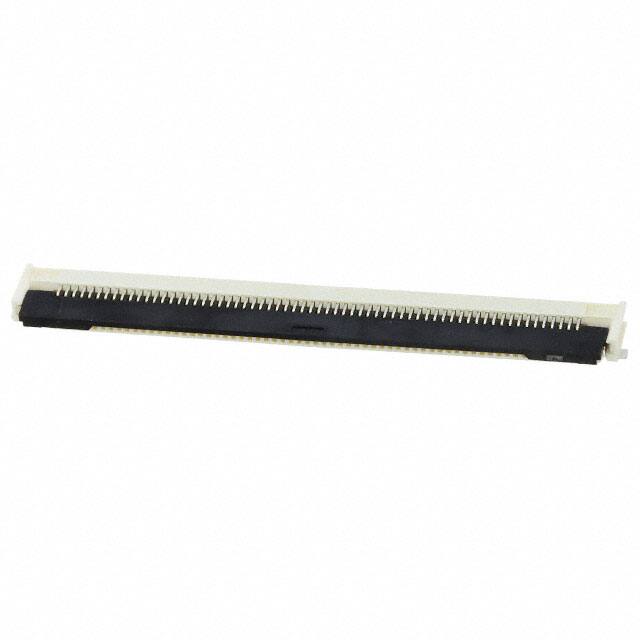

5051106491

Teknik Özellikler

Total Number Of Contacts

64

Reliability

COMMERCIAL

Flat Flex Type

FFC, FPC

Reference Standard

UL

Option

GENERAL PURPOSE

Current Rating Amps

0.5A

Connector Type

FFC/FPC CONNECTOR

Ul Flammability Code

94V-0

Ambalaj

Tape & Reel (TR)

Terminal

Solder

Iec Conformance

NO

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Contact Resistance

40mOhm

Actuatorcolor

Black

Montaj Tipi

Surface Mount, Right Angle

Cable End Type

Tabbed, Tapered

Contact Finish Thickness

1.97μin 0.050μm

Insulation Resistance

50000000Ohm

Contact Pattern

RECTANGULAR

Contact Materials

Phosphor Bronze

Body Length Or Diameter

1.445 inch

JESD-609 Kodu

e4

Housing Color

Beige

Contact Gender

FEMALE

Pcb Contact Pattern

RECTANGULAR

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Material Flammability Rating

UL94 V-0

Actuator Material

Polyamide (PA), Nylon, Glass Filled

Seri

Easy-On FD19 505110

Height Above Board

0.075 1.90mm

Pitch

0.020 0.50mm

Contact Finish

Gold

Din Conformance

NO

Contact Style

BELLOWED TYPE

Yayın Yılı

2015

Durability

10 Cycles

Pozisyon Sayısı

64

Kurşunsuz Kodu

yes

Mixed Contacts

NO

Sıra Sayısı

1
