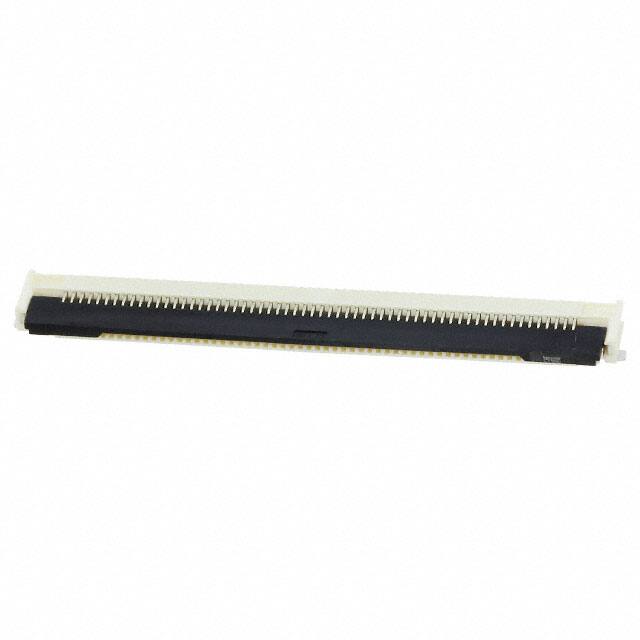

5051106091

Teknik Özellikler

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Contact Resistance

40mOhm

Actuatorcolor

Black

Montaj Tipi

Surface Mount, Right Angle

Terminal

Solder

Iec Conformance

NO

Option

GENERAL PURPOSE

Total Number Of Contacts

60

Reliability

COMMERCIAL

Flat Flex Type

FFC, FPC

Reference Standard

UL

Ul Flammability Code

94V-0

Ambalaj

Tape & Reel (TR)

Current Rating Amps

0.5A

Connector Type

FFC/FPC CONNECTOR

Material Flammability Rating

UL94 V-0

Actuator Material

Polyamide (PA), Nylon, Glass Filled

Housing Color

Beige

Contact Gender

FEMALE

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Pcb Contact Pattern

RECTANGULAR

Pitch

0.020 0.50mm

Height Above Board

0.075 1.90mm

Contact Finish

Gold

Seri

Easy-On FD19 505110

Insulation Resistance

50000000Ohm

Cable End Type

Tabbed, Tapered

Contact Finish Thickness

1.97μin 0.050μm

JESD-609 Kodu

e4

Contact Pattern

RECTANGULAR

Contact Materials

Phosphor Bronze

Body Length Or Diameter

1.366 inch

Sıra Sayısı

1

Filter Feature

NO

Çalışma Sıcaklığı

-40°C~105°C

Ffc Fcb Thickness

0.30mm

Insertion Forcemax

ZIF N

Plating Thickness

2μin

Board Mounting Option

FITTING NAIL

Nem Hassasiyeti (MSL)

1 (Unlimited)
