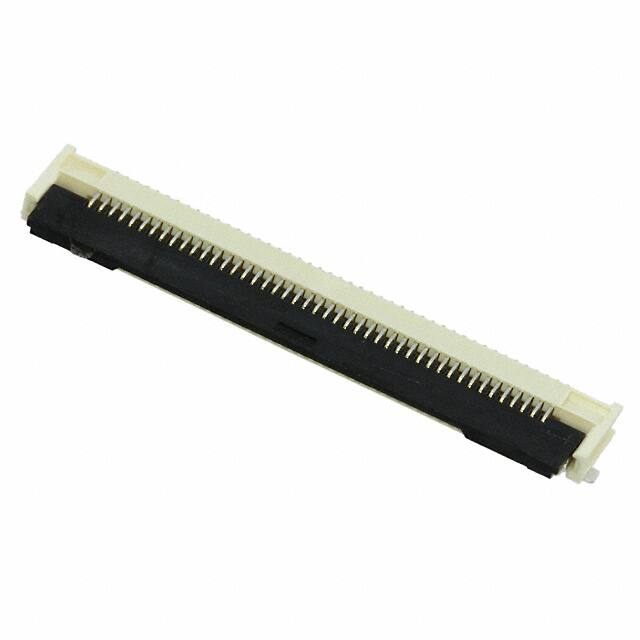

5051104591

Teknik Özellikler

Reference Standard

UL

Total Number Of Contacts

45

Reliability

COMMERCIAL

Flat Flex Type

FFC, FPC

Option

GENERAL PURPOSE

Connector Type

FFC/FPC CONNECTOR

Current Rating Amps

0.5A

Ambalaj

Tape & Reel (TR)

Iec Conformance

NO

Terminal

Solder

Montaj Tipi

Surface Mount, Right Angle

Actuatorcolor

Black

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Contact Resistance

40mOhm

Cable End Type

Tabbed, Tapered

Contact Finish Thickness

1.97μin 0.050μm

Insulation Resistance

50000000Ohm

Body Length Or Diameter

1.071 inch

Contact Materials

Phosphor Bronze

Contact Pattern

RECTANGULAR

Withdrawl Forcemin

ZIF N

Pcb Contact Pattern

RECTANGULAR

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Housing Color

Beige

Contact Gender

FEMALE

Actuator Material

Polyamide (PA), Nylon, Glass Filled

Material Flammability Rating

UL94 V-0

Seri

Easy-On FD19 505110

Contact Finish

Gold

Pitch

0.020 0.50mm

Height Above Board

0.075 1.90mm

Din Conformance

NO

Contact Style

BELLOWED TYPE

Yayın Yılı

2015

Pozisyon Sayısı

45

Durability

10 Cycles

Mixed Contacts

NO

Ffc Fcb Thickness

0.30mm

Çalışma Sıcaklığı

-40°C~105°C

Sıra Sayısı

1
