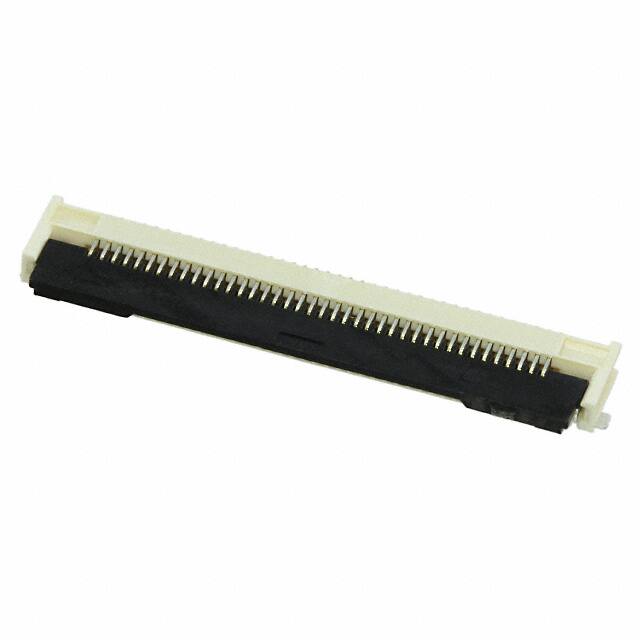

5051104091

Teknik Özellikler

Flat Flex Type

FFC, FPC

Reliability

COMMERCIAL

Total Number Of Contacts

40

Reference Standard

UL

Option

GENERAL PURPOSE

Current Rating Amps

0.5A

Connector Type

FFC/FPC CONNECTOR

Ambalaj

Tape & Reel (TR)

Ul Flammability Code

94V-0

Iec Conformance

NO

Terminal

Solder

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Montaj Tipi

Surface Mount, Right Angle

Actuatorcolor

Black

Cable End Type

Tabbed, Tapered

Contact Finish Thickness

1.97μin 0.050μm

Insulation Resistance

50000000Ohm

Contact Pattern

RECTANGULAR

Contact Materials

Phosphor Bronze

Body Length Or Diameter

0.972 inch

JESD-609 Kodu

e4

Contact Gender

FEMALE

Housing Color

Beige

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Pcb Contact Pattern

RECTANGULAR

Material Flammability Rating

UL94 V-0

Actuator Material

Polyamide (PA), Nylon, Glass Filled

Seri

Easy-On FD19 505110

Pitch

0.020 0.50mm

Height Above Board

0.075 1.90mm

Contact Finish

Gold

Din Conformance

NO

Yayın Yılı

2015

Contact Style

BELLOWED TYPE

Durability

10 Cycles

Pozisyon Sayısı

40

Mixed Contacts

NO

Kurşunsuz Kodu

yes

Filter Feature

NO

Sıra Sayısı

1
