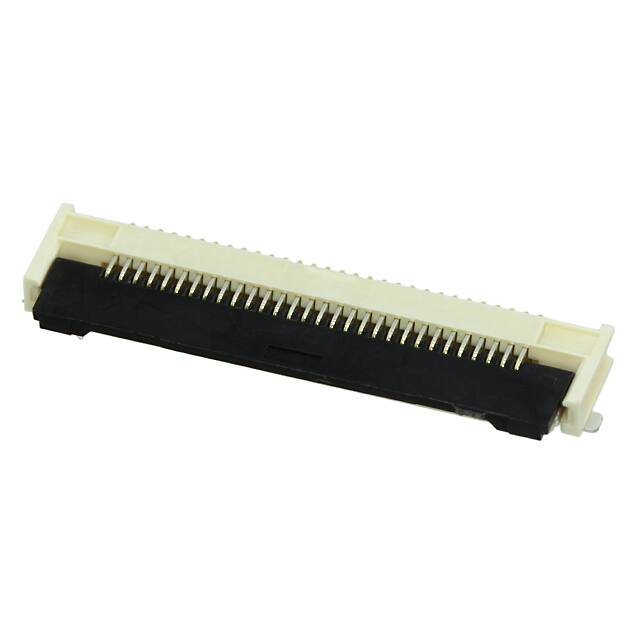

5051103091

Teknik Özellikler

Current Rating Amps

0.5A

Connector Type

FFC/FPC CONNECTOR

Ul Flammability Code

94V-0

Ambalaj

Tape & Reel (TR)

Reliability

COMMERCIAL

Total Number Of Contacts

30

Flat Flex Type

FFC, FPC

Reference Standard

UL

Option

GENERAL PURPOSE

Terminal

Solder

Iec Conformance

NO

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Contact Resistance

40mOhm

Actuatorcolor

Black

Montaj Tipi

Surface Mount, Right Angle

Body Length Or Diameter

0.776 inch

Contact Materials

Phosphor Bronze

Contact Pattern

RECTANGULAR

JESD-609 Kodu

e4

Cable End Type

Tabbed, Tapered

Contact Finish Thickness

1.97μin 0.050μm

Insulation Resistance

50000000Ohm

Seri

Easy-On FD19 505110

Height Above Board

0.075 1.90mm

Pitch

0.020 0.50mm

Contact Finish

Gold

Housing Color

Beige

Contact Gender

FEMALE

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Pcb Contact Pattern

RECTANGULAR

Material Flammability Rating

UL94 V-0

Actuator Material

Polyamide (PA), Nylon, Glass Filled

Durability

10 Cycles

Pozisyon Sayısı

30

Kurşunsuz Kodu

yes

Mixed Contacts

NO

Din Conformance

NO

Contact Style

BELLOWED TYPE

Yayın Yılı

2015

Plating Thickness

2μin
