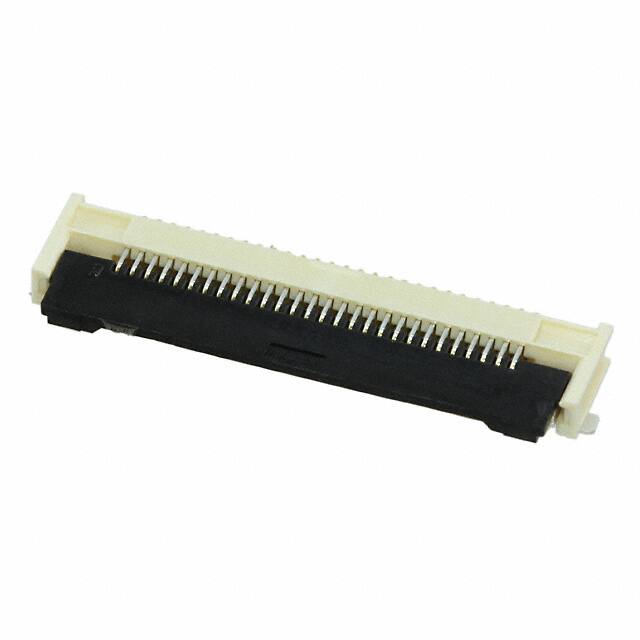

5051102891

Teknik Özellikler

Number Of Pcb Rows

1

Body Breadth

0.075 inch

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant

Mounting Option1

LOCKING

Fabrika Tedarik Süresi

17 Weeks

Locking Feature

Flip Lock

Mating Cycles

25

Mil Conformance

NO

Body Depth

0.159 inch

Nominal Gerilim

50V

Insertion Forcemax

ZIF N

Plating Thickness

2μin

Board Mounting Option

FITTING NAIL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

1

Filter Feature

NO

Çalışma Sıcaklığı

-40°C~105°C

Ffc Fcb Thickness

0.30mm

Kurşunsuz Kodu

yes

Mixed Contacts

NO

Durability

10 Cycles

Pozisyon Sayısı

28

Contact Style

BELLOWED TYPE

Yayın Yılı

2015

Din Conformance

NO

Height Above Board

0.075 1.90mm

Pitch

0.020 0.50mm

Contact Finish

Gold

Seri

Easy-On FD19 505110

Material Flammability Rating

UL94 V-0

Actuator Material

Polyamide (PA), Nylon, Glass Filled

Housing Color

Beige

Contact Gender

FEMALE

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Pcb Contact Pattern

RECTANGULAR

JESD-609 Kodu

e4

Body Length Or Diameter

0.736 inch

Contact Materials

Phosphor Bronze

Contact Pattern

RECTANGULAR
