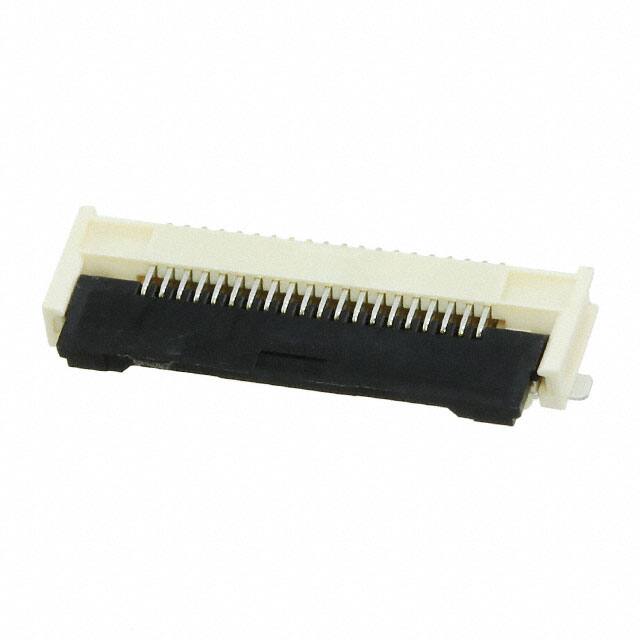

5051102091

Teknik Özellikler

Terminal

Solder

Iec Conformance

NO

Actuatorcolor

Black

Montaj Tipi

Surface Mount, Right Angle

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Contact Resistance

40mOhm

Reference Standard

UL

Reliability

COMMERCIAL

Total Number Of Contacts

20

Flat Flex Type

FFC, FPC

Option

GENERAL PURPOSE

Connector Type

FFC/FPC CONNECTOR

Current Rating Amps

0.5A

Ul Flammability Code

94V-0

Ambalaj

Tape & Reel (TR)

Pcb Contact Pattern

RECTANGULAR

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Housing Color

Beige

Contact Gender

FEMALE

Actuator Material

Polyamide (PA), Nylon, Glass Filled

Material Flammability Rating

UL94 V-0

Seri

Easy-On FD19 505110

Contact Finish

Gold

Height Above Board

0.075 1.90mm

Pitch

0.020 0.50mm

Cable End Type

Tabbed, Tapered

Contact Finish Thickness

1.97μin 0.050μm

Insulation Resistance

50000000Ohm

Body Length Or Diameter

0.578 inch

Contact Materials

Phosphor Bronze

Contact Pattern

RECTANGULAR

JESD-609 Kodu

e4

Çalışma Sıcaklığı

-40°C~105°C

Ffc Fcb Thickness

0.30mm

Sıra Sayısı

1

Filter Feature

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Plating Thickness

2μin

Board Mounting Option

FITTING NAIL

Insertion Forcemax

ZIF N
