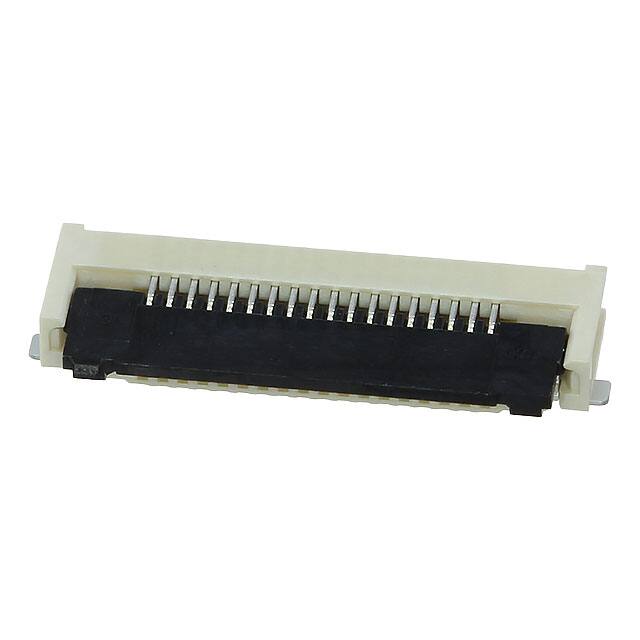

5051101892

Teknik Özellikler

Sıra Sayısı

1

Filter Feature

NO

Ffc Fcb Thickness

0.30mm

Çalışma Sıcaklığı

-40°C~105°C

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Montaj Tipi

Surface Mount, Right Angle

Actuatorcolor

Black

Terminal

Solder

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

ECCN Kodu

EAR99

Yayın Yılı

2015

Option

GENERAL PURPOSE

Total Number Of Contacts

18

Flat Flex Type

FFC, FPC

Mating Information

NO

Din Conformance

NO

Kurşunsuz Kodu

yes

Mixed Contacts

NO

Ul Flammability Code

94V-0

Ambalaj

Tape & Reel (TR)

Current Rating Amps

0.5A

Pozisyon Sayısı

18

Connector Type

FFC/FPC CONNECTOR

Material Flammability Rating

UL94 V-0

Actuator Material

Polyamide (PA), Nylon, Glass Filled

Housing Color

Beige

Contact Gender

FEMALE

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Parça Durumu

Active

Pitch

0.020 0.50mm

Height Above Board

0.075 1.90mm

Contact Finish

Gold

Seri

Easy-On FD19 505110

Nominal Gerilim

50V

Cable End Type

Tabbed, Tapered

Contact Finish Thickness

1.97μin 0.050μm

RoHS Durumu

ROHS3 Compliant

Fabrika Tedarik Süresi

17 Weeks

JESD-609 Kodu

e4
