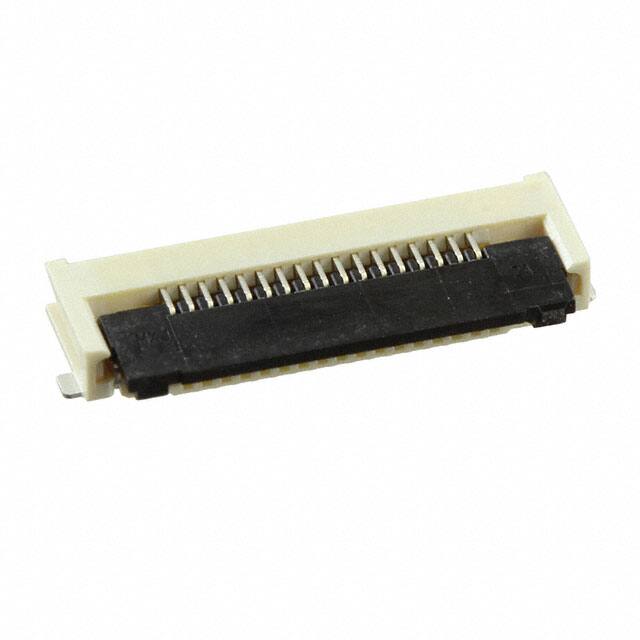

5051101792

Teknik Özellikler

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Parça Durumu

Active

Housing Color

Beige

Contact Gender

FEMALE

Actuator Material

Polyamide (PA), Nylon, Glass Filled

Material Flammability Rating

UL94 V-0

Seri

Easy-On FD19 505110

Contact Finish

Gold

Pitch

0.020 0.50mm

Height Above Board

0.075 1.90mm

Nominal Gerilim

50V

Cable End Type

Tabbed, Tapered

Contact Finish Thickness

1.97μin 0.050μm

Contact Materials

Phosphor Bronze

Mil Conformance

NO

Mating Cycles

25

Locking Feature

Flip Lock, Backlock

JESD-609 Kodu

e4

RoHS Durumu

ROHS3 Compliant

Fabrika Tedarik Süresi

17 Weeks

Ffc Fcb Thickness

0.30mm

Çalışma Sıcaklığı

-40°C~105°C

Sıra Sayısı

1

Filter Feature

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder

Iec Conformance

NO

Montaj Tipi

Surface Mount, Right Angle

Actuatorcolor

Black

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Din Conformance

NO

Mating Information

NO

Total Number Of Contacts

17

Flat Flex Type

FFC, FPC

Option

GENERAL PURPOSE

ECCN Kodu

EAR99

Yayın Yılı

2015

Pozisyon Sayısı

17

Connector Type

FFC/FPC CONNECTOR

Current Rating Amps

0.5A
