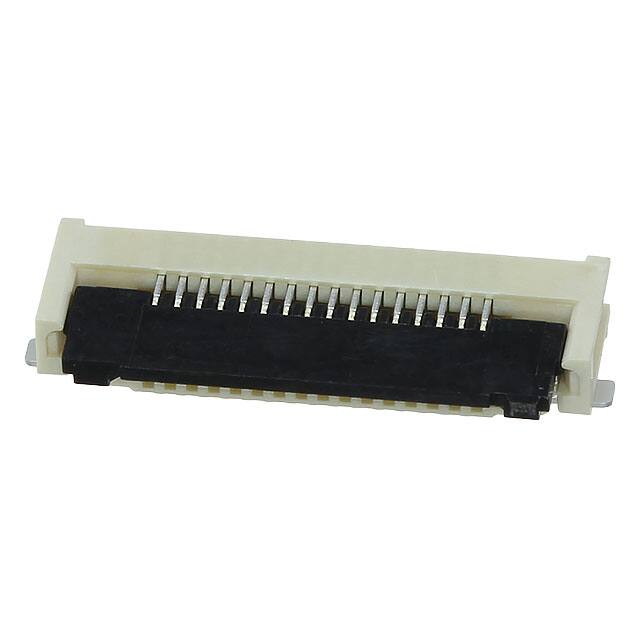

5051101692

Teknik Özellikler

Connector Type

FFC/FPC CONNECTOR

Pozisyon Sayısı

16

Current Rating Amps

0.5A

Ul Flammability Code

94V-0

Ambalaj

Tape & Reel (TR)

Kurşunsuz Kodu

yes

Mixed Contacts

NO

Mating Information

NO

Din Conformance

NO

Total Number Of Contacts

16

Flat Flex Type

FFC, FPC

Option

GENERAL PURPOSE

ECCN Kodu

EAR99

Yayın Yılı

2015

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder

Iec Conformance

NO

Montaj Tipi

Surface Mount, Right Angle

Actuatorcolor

Black

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Ffc Fcb Thickness

0.30mm

Çalışma Sıcaklığı

-40°C~105°C

Sıra Sayısı

1

Filter Feature

NO

Contact Materials

Phosphor Bronze

Mating Cycles

25

Mil Conformance

NO

Locking Feature

Flip Lock, Backlock

JESD-609 Kodu

e4

RoHS Durumu

ROHS3 Compliant

Fabrika Tedarik Süresi

17 Weeks

Nominal Gerilim

50V

Contact Finish Thickness

1.97μin 0.050μm

Cable End Type

Tabbed, Tapered

Seri

Easy-On FD19 505110

Contact Finish

Gold

Pitch

0.020 0.50mm

Height Above Board

0.075 1.90mm

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Parça Durumu

Active
