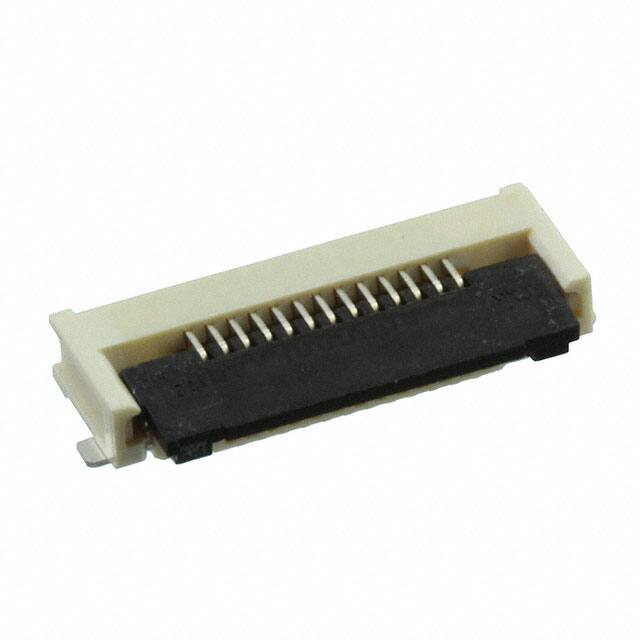

5051101392

Teknik Özellikler

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Montaj Tipi

Surface Mount, Right Angle

Actuatorcolor

Black

Terminal

Solder

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ffc Fcb Thickness

0.30mm

Çalışma Sıcaklığı

-40°C~105°C

Ambalaj

Tape & Reel (TR)

Current Rating Amps

0.5A

Pozisyon Sayısı

13

Yayın Yılı

2015

Flat Flex Type

FFC, FPC

Pitch

0.020 0.50mm

Height Above Board

0.075 1.90mm

Contact Finish

Gold

Seri

Easy-On FD19 505110

Material Flammability Rating

UL94 V-0

Actuator Material

Polyamide (PA), Nylon, Glass Filled

Housing Color

Beige

Parça Durumu

Active

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Fabrika Tedarik Süresi

17 Weeks

RoHS Durumu

ROHS3 Compliant

Locking Feature

Flip Lock, Backlock

Mating Cycles

25

Contact Materials

Phosphor Bronze

Cable End Type

Tabbed, Tapered

Contact Finish Thickness

1.97μin 0.050μm

Nominal Gerilim

50V
