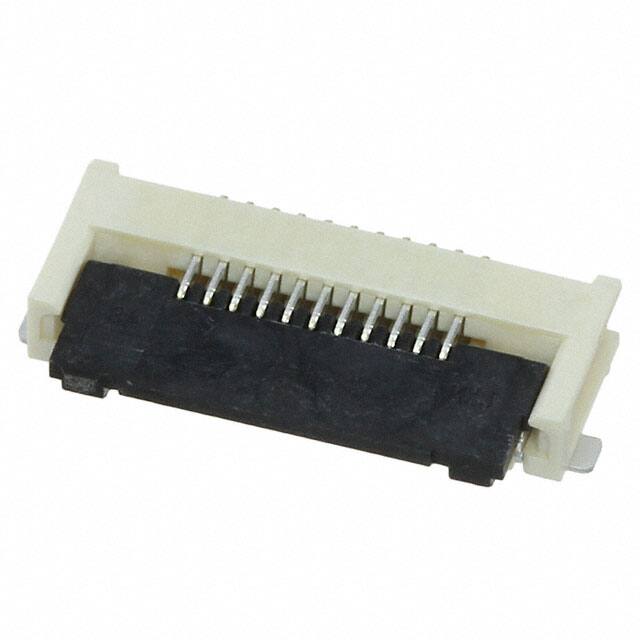

5051101192

Teknik Özellikler

Nominal Gerilim

50V

Contact Finish Thickness

1.97μin 0.050μm

Cable End Type

Tabbed, Tapered

JESD-609 Kodu

e4

Fabrika Tedarik Süresi

17 Weeks

RoHS Durumu

ROHS3 Compliant

HTS Kodu

8536.69.40.40

Mating Cycles

25

Mil Conformance

NO

Contact Materials

Phosphor Bronze

Locking Feature

Flip Lock, Backlock

Actuator Material

Polyamide (PA), Nylon, Glass Filled

Material Flammability Rating

UL94 V-0

Parça Durumu

Active

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Contact Gender

FEMALE

Housing Color

Beige

Contact Finish

Gold

Height Above Board

0.075 1.90mm

Pitch

0.020 0.50mm

Seri

Easy-On FD19 505110

Option

GENERAL PURPOSE

Yayın Yılı

2015

ECCN Kodu

EAR99

Din Conformance

NO

Mating Information

NO

Flat Flex Type

FFC, FPC

Total Number Of Contacts

11

Ambalaj

Tape & Reel (TR)

Ul Flammability Code

94V-0

Mixed Contacts

NO

Kurşunsuz Kodu

yes

Connector Type

FFC/FPC CONNECTOR

Pozisyon Sayısı

11

Current Rating Amps

0.5A

Ffc Fcb Thickness

0.30mm

Çalışma Sıcaklığı

-40°C~105°C

Filter Feature

NO

Sıra Sayısı

1

Montaj Tipi

Surface Mount, Right Angle
