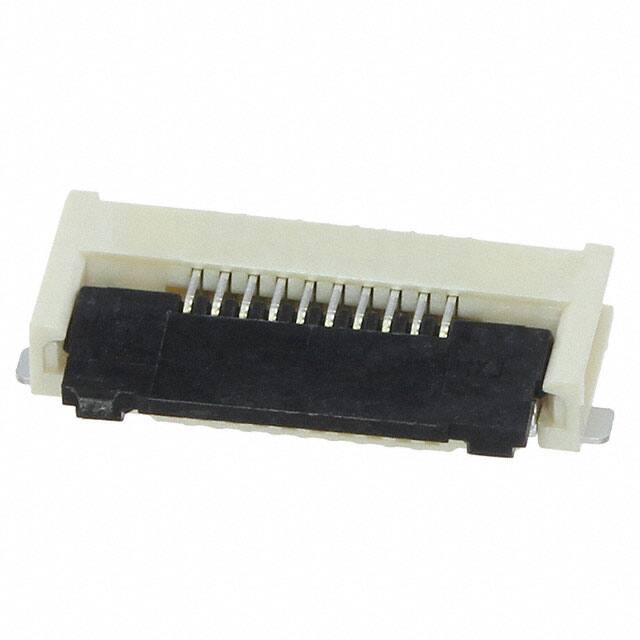

5051101092

Teknik Özellikler

Mixed Contacts

NO

Kurşunsuz Kodu

yes

Ambalaj

Tape & Reel (TR)

Ul Flammability Code

94V-0

Current Rating Amps

0.5A

Connector Type

FFC/FPC CONNECTOR

Pozisyon Sayısı

10

Yayın Yılı

2015

ECCN Kodu

EAR99

Option

GENERAL PURPOSE

Flat Flex Type

FFC, FPC

Total Number Of Contacts

10

Mating Information

NO

Din Conformance

NO

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Montaj Tipi

Surface Mount, Right Angle

Actuatorcolor

Black

Iec Conformance

NO

Terminal

Solder

Nem Hassasiyeti (MSL)

1 (Unlimited)

Filter Feature

NO

Sıra Sayısı

1

Çalışma Sıcaklığı

-40°C~105°C

Ffc Fcb Thickness

0.30mm

Fabrika Tedarik Süresi

17 Weeks

RoHS Durumu

ROHS3 Compliant

JESD-609 Kodu

e4

Locking Feature

Flip Lock, Backlock

Mating Cycles

25

Mil Conformance

NO

Contact Materials

Phosphor Bronze

Nominal Gerilim

50V

Contact Finish Thickness

1.97μin 0.050μm

Cable End Type

Tabbed, Tapered

Height Above Board

0.075 1.90mm

Pitch

0.020 0.50mm

Contact Finish

Gold

Seri

Easy-On FD19 505110

Material Flammability Rating

UL94 V-0

Actuator Material

Polyamide (PA), Nylon, Glass Filled
