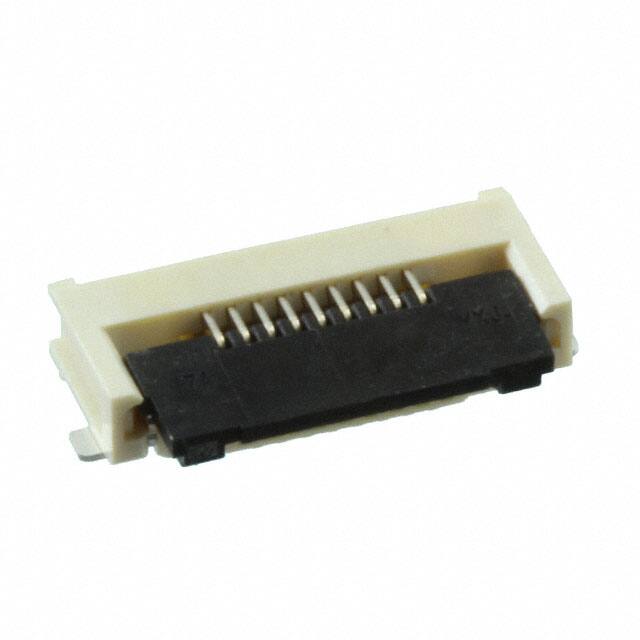

5051100992

Teknik Özellikler

Option

GENERAL PURPOSE

Yayın Yılı

2015

Din Conformance

NO

Mating Information

NO

Flat Flex Type

FFC, FPC

Total Number Of Contacts

9

Ambalaj

Tape & Reel (TR)

Mixed Contacts

NO

Kurşunsuz Kodu

yes

Pozisyon Sayısı

9

Connector Type

FFC/FPC CONNECTOR

Current Rating Amps

0.5A

Çalışma Sıcaklığı

-40°C~105°C

Ffc Fcb Thickness

0.30mm

Filter Feature

NO

Sıra Sayısı

1

Actuatorcolor

Black

Montaj Tipi

Surface Mount, Right Angle

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Terminal

Solder

Nominal Gerilim

50V

Cable End Type

Tabbed, Tapered

Contact Finish Thickness

1.97μin 0.050μm

JESD-609 Kodu

e4

Fabrika Tedarik Süresi

17 Weeks

RoHS Durumu

ROHS3 Compliant

Mating Cycles

25

Mil Conformance

NO

Contact Materials

Phosphor Bronze

Locking Feature

Flip Lock, Backlock

Actuator Material

Polyamide (PA), Nylon, Glass Filled

Material Flammability Rating

UL94 V-0

Parça Durumu

Active

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Contact Gender

FEMALE

Housing Color

Beige

Contact Finish

Gold

Height Above Board

0.075 1.90mm
