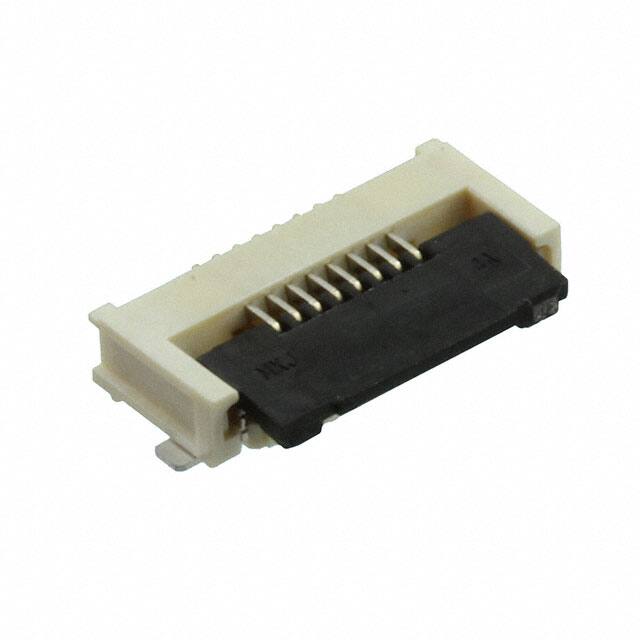

5051100892

Teknik Özellikler

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Parça Durumu

Active

Housing Color

Beige

Contact Gender

FEMALE

Actuator Material

Polyamide (PA), Nylon, Glass Filled

Material Flammability Rating

UL94 V-0

Seri

Easy-On FD19 505110

Contact Finish

Gold

Height Above Board

0.075 1.90mm

Pitch

0.020 0.50mm

Nominal Gerilim

50V

Contact Finish Thickness

1.97μin 0.050μm

Cable End Type

Tabbed, Tapered

Contact Materials

Phosphor Bronze

Mating Cycles

25

Mil Conformance

NO

Locking Feature

Flip Lock, Backlock

JESD-609 Kodu

e4

RoHS Durumu

ROHS3 Compliant

Fabrika Tedarik Süresi

17 Weeks

Çalışma Sıcaklığı

-40°C~105°C

Ffc Fcb Thickness

0.30mm

Sıra Sayısı

1

Filter Feature

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder

Iec Conformance

NO

Actuatorcolor

Black

Montaj Tipi

Surface Mount, Right Angle

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Din Conformance

NO

Mating Information

NO

Total Number Of Contacts

8

Flat Flex Type

FFC, FPC

Option

GENERAL PURPOSE

ECCN Kodu

EAR99

Yayın Yılı

2015

Connector Type

FFC/FPC CONNECTOR

Pozisyon Sayısı

8

Current Rating Amps

0.5A
