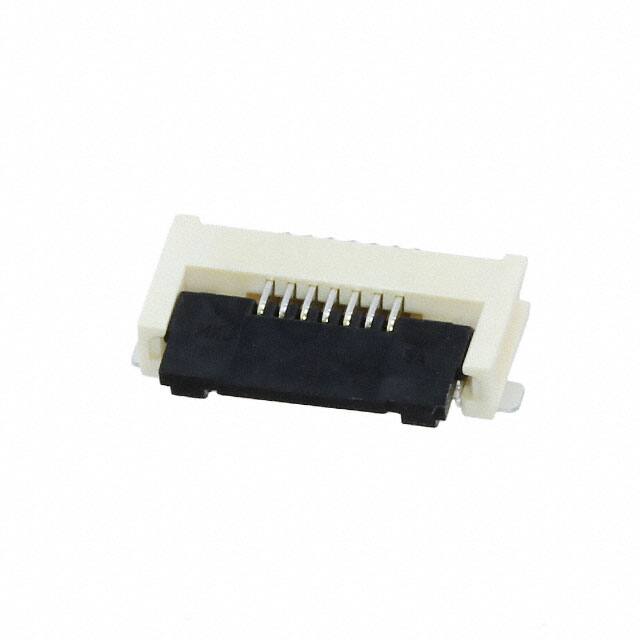

5051100692

Teknik Özellikler

Ambalaj

Tape & Reel (TR)

Ul Flammability Code

94V-0

Mixed Contacts

NO

Kurşunsuz Kodu

yes

Pozisyon Sayısı

6

Connector Type

FFC/FPC CONNECTOR

Current Rating Amps

0.5A

Option

GENERAL PURPOSE

Yayın Yılı

2015

ECCN Kodu

EAR99

Din Conformance

NO

Mating Information

NO

Flat Flex Type

FFC, FPC

Total Number Of Contacts

6

Actuatorcolor

Black

Montaj Tipi

Surface Mount, Right Angle

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder

Iec Conformance

NO

Çalışma Sıcaklığı

-40°C~105°C

Ffc Fcb Thickness

0.30mm

Filter Feature

NO

Sıra Sayısı

1

JESD-609 Kodu

e4

Fabrika Tedarik Süresi

17 Weeks

RoHS Durumu

ROHS3 Compliant

Mating Cycles

25

Mil Conformance

NO

Contact Materials

Phosphor Bronze

Locking Feature

Flip Lock, Backlock

Nominal Gerilim

50V

Contact Finish Thickness

1.97μin 0.050μm

Cable End Type

Tabbed, Tapered

Contact Finish

Gold

Height Above Board

0.075 1.90mm

Pitch

0.020 0.50mm

Seri

Easy-On FD19 505110

Actuator Material

Polyamide (PA), Nylon, Glass Filled

Material Flammability Rating

UL94 V-0
