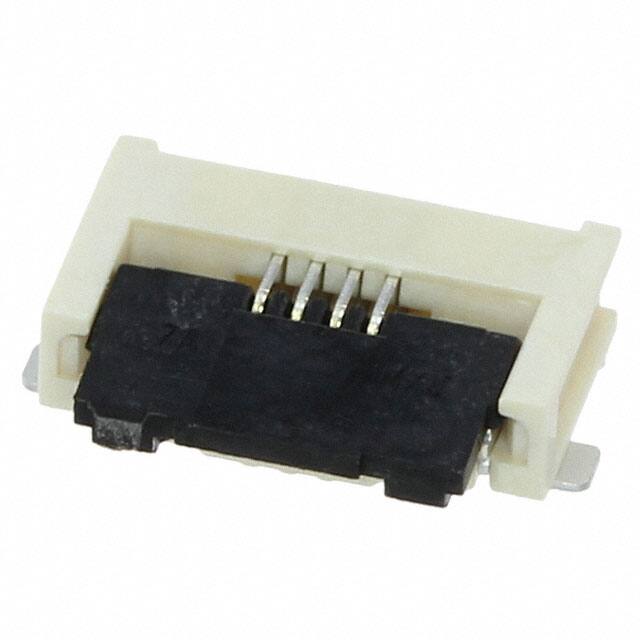

5051100492

Teknik Özellikler

Seri

Easy-On FD19 505110

Number Of Pcb Rows

1

Contact Finish

Gold

Pitch

0.020 0.50mm

Height Above Board

0.075 1.90mm

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Contact Gender

FEMALE

Body Breadth

0.075 inch

Housing Color

Beige

Actuator Material

Polyamide (PA), Nylon, Glass Filled

Material Flammability Rating

UL94 V-0

Mating Cycles

25

Contact Pattern

RECTANGULAR

Contact Materials

Phosphor Bronze

Locking Feature

Flip Lock, Backlock

JESD-609 Kodu

e4

Mounting Option1

LOCKING

Fabrika Tedarik Süresi

17 Weeks

RoHS Durumu

ROHS3 Compliant

Nominal Gerilim

50V

Cable End Type

Tabbed, Tapered

Contact Finish Thickness

1.97μin 0.050μm

Body Depth

0.156 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder

Plating Thickness

2μin

Montaj Tipi

Surface Mount, Right Angle

Actuatorcolor

Black

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Ffc Fcb Thickness

0.30mm

Çalışma Sıcaklığı

-40°C~105°C

Filter Feature

NO

Sıra Sayısı

1

Pozisyon Sayısı

4

Connector Type

FFC/FPC CONNECTOR

Current Rating Amps

0.5A

Ambalaj

Tape & Reel (TR)

Mixed Contacts

NO
